Push the boot onto the steering gear housing and position - AR46.40-P-0400-02CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164, 171, 172, 203, 204, 207, 209, 211, 212, 218, 219, 251

Shown on steering gear, model 204

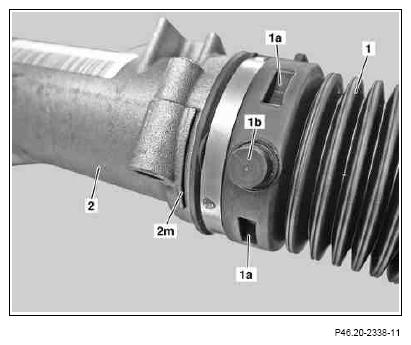

Fig 1: Steering Gear Housing And Boot - Shown On Model 204

Courtesy of MERCEDES-BENZ USA

Push boot (1) onto steering gear housing (2).
Model 172, 204, 207, 212, 218: Slide on until the recesses (1a) are at the housing (2) of the steering gear.
Position boot (1).
Model 204, 207 with diaphragm valve (1b):

As shown in the picture the diaphragm valve (1b) must be located in the center of the marking (2m).

Model 164, 171, 203, 209, 251:

The diaphragm valve (1b) must point in the direction of travel.

Model 211, 219:

The diaphragm valve (1b) must point opposite to the direction of travel.

Model 172:

The diaphragm valve (1b) on the right boot (1) must point opposite to the direction of travel.
