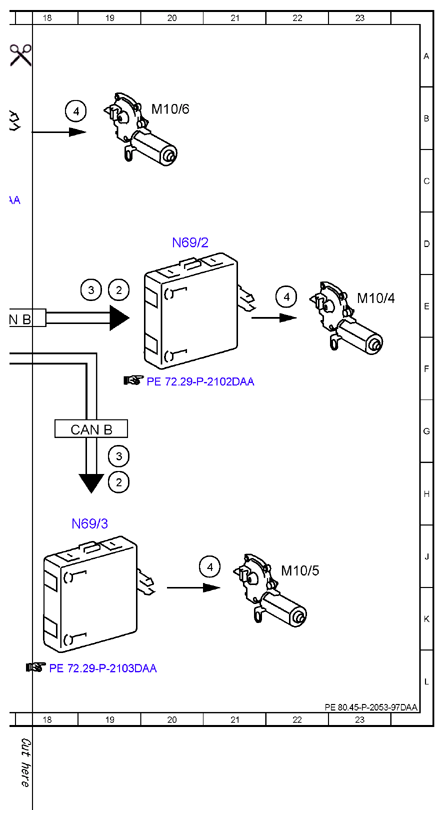

Electrical function schematic for convenience opening/closing via recirculated air function - PE80.45-P-2053-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 without CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11D |
| 2 | Convenience feature, status | 5H |
| 2 | Convenience feature, status | 10H |
| 2 | Convenience feature, status | 14H |
| 2 | Convenience feature, status | 19H |
| 2 | Convenience feature, status | 15B |
| 2 | Convenience feature, status | 19E |
| 3 | Convenience feature direction, signal | 5H |
| 3 | Convenience feature direction, signal | 10H |
| 3 | Convenience feature direction, signal | 14H |
| 3 | Convenience feature direction, signal | 19G |
| 3 | Convenience feature direction, signal | 15B |
| 3 | Convenience feature direction, signal | 19E |
| 4 | Power window motor, actuation | 15J |
| 4 | Power window motor, actuation | 21J |
| 4 | Power window motor, actuation | 18B |
| 4 | Power window motor, actuation | 22E |
| 5 | Tilting/sliding roof motor, actuation | 3K |
| A98 | Panoramic sliding roof control module | 9J |
| A98m1 | Panoramic sliding roof motor | 9J |
| A98n1 | Panoramic sliding roof control unit | 9J |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 19G |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 17E |
| Code 413 | Panoramic sliding sunroof | 8J |
| Code 414 | Electric glass tilting/sliding roof | 1J |
| M10/3 | Left front door power window motor | 16K |
| M10/4 | Right front door power window motor | 23E |
| M10/5 | Left rear door power window motor | 22J |
| M10/6 | Right rear door power window motor | 20B |
| M12 | Tilting/sliding roof drive unit | 2K |
| M12m1 | Tilting/sliding roof motor | 2K |
| N22/7 | Automatic air conditioning control and operating unit | 13E |
| N22/7s2 | Air recirculation mode button | 11B |
| N69/1 | Left front door control unit | 13J |
| N69/2 | Right front door control unit | 20D |
| N69/3 | Left rear door control unit | 19J |
| N69/4 | Right rear door control unit | 16A |
| N70 | Overhead control panel control unit | 4J |
| N73 | Electronic ignition switch control unit | 2D |
