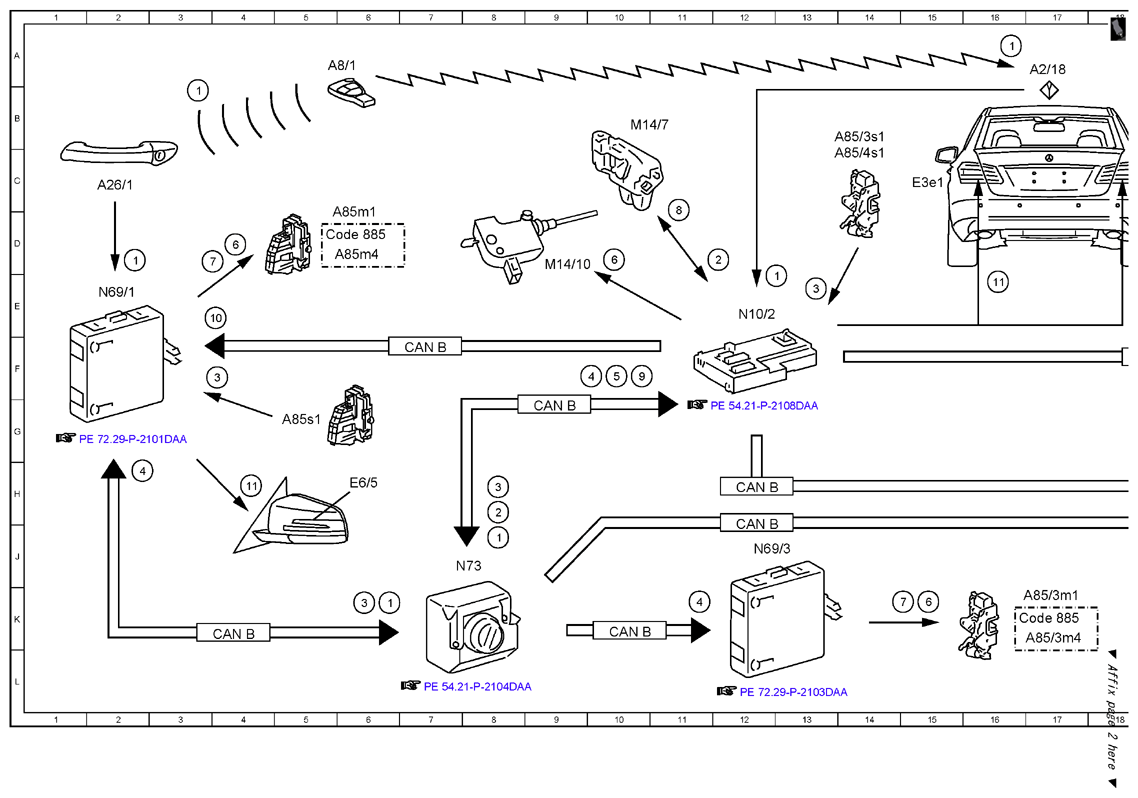

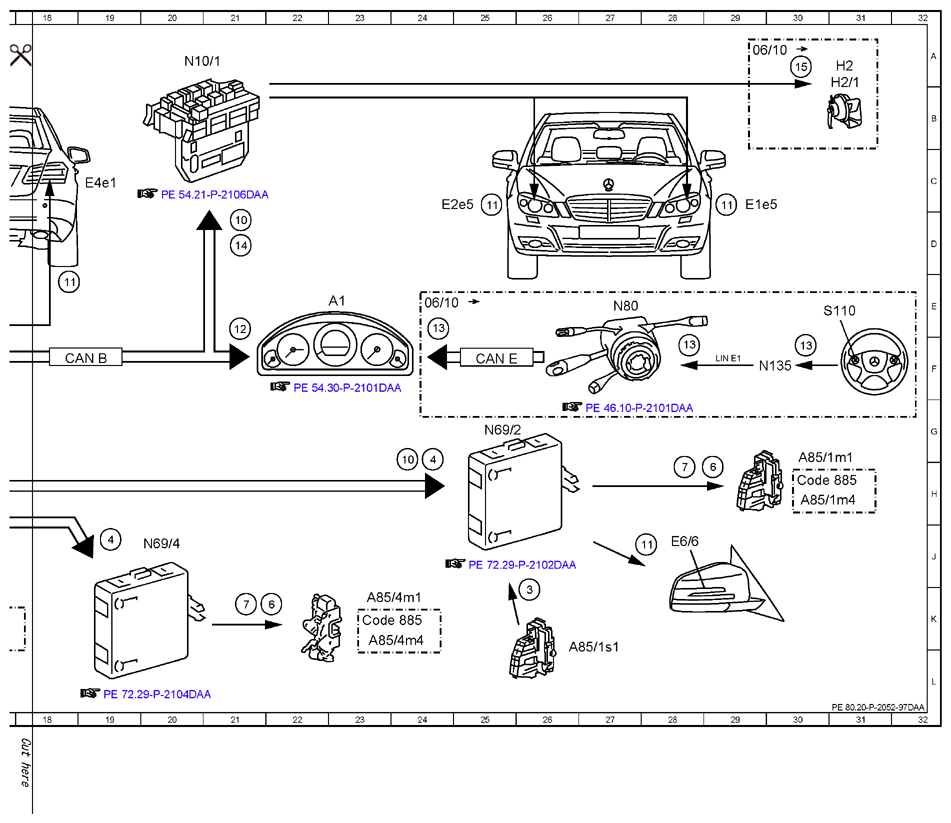

Electrical function schematic for central locking, operation with transmitter key - PE80.20-P-2052-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking and access authorization, signal | 6K |
| 1 | Central locking and access authorization, signal | 8J |
| 1 | Central locking and access authorization, signal | 2D |
| 1 | Central locking and access authorization, signal | 3B |
| 1 | Central locking and access authorization, signal | 12E |
| 1 | Central locking and access authorization, signal | 16A |
| 10 | Flasher frequency, signal | 24H |
| 10 | Flasher frequency, signal | 21D |
| 10 | Flasher frequency, signal | 4E |
| 11 | Turn signal lamp, actuation | 16E |
| 11 | Turn signal lamp, actuation | 28J |
| 11 | Turn signal lamp, actuation | 18E |
| 11 | Turn signal lamp, actuation | 25C |
| 11 | Turn signal lamp, actuation | 29C |
| 11 | Turn signal lamp, actuation | 4H |
| 2 | Trunk lid rotary tumbler switch, status | 12D |
| 2 | Trunk lid rotary tumbler switch, status | 8H |
| 3 | Door rotary tumbler switch, status | 13E |
| 3 | Door rotary tumbler switch, status | 26K |
| 3 | Door rotary tumbler switch, status | 8H |
| 3 | Door rotary tumbler switch, status | 6K |
| 3 | Door rotary tumbler switch, status | 4F |
| 4 | Open/close central locking, request | 10F |
| 4 | Open/close central locking, request | 11K |
| 4 | Open/close central locking, request | 19J |
| 4 | Open/close central locking, request | 24H |
| 4 | Open/close central locking, request | 2H |
| 5 | Open trunk lid, request | 10F |
| 6 | Central locking motor, actuation | 15K |
| 6 | Central locking motor, actuation | 10D |
| 6 | Central locking motor, actuation | 22K |
| 6 | Central locking motor, actuation | 29H |
| 6 | Central locking motor, actuation | 4D |
| 7 | Additional door lock actuator motor, actuation | 15K |
| 7 | Additional door lock actuator motor, actuation | 3D |
| 7 | Additional door lock actuator motor, actuation | 21K |
| 7 | Additional door lock actuator motor, actuation | 28H |
| 8 | Trunk lid central locking motor, actuation | 11D |
| 9 | Visual feedback, request | 10F |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 17A |
| A26/1 | Driver-side front door infrared remote control receiver | 2C |
| A8/1 | Transmitter key | 5A |
| A85/1m1 | Right front door central locking motor | 30G |
| A85/1m4 | Right front door additional door lock actuator motor | 30H |
| A85/1s1 | Right front door rotary tumbler switch | 26L |
| A85/3m1 | Left rear door central locking motor | 17K |
| A85/3m4 | Left rear door additional door lock actuator motor | 17K |
| A85/3s1 | Left rear door rotary tumbler switch | 14B |
| A85/4m1 | Right rear door central locking motor | 23K |
| A85/4m4 | Right rear door additional door lock actuator motor | 23K |
| A85/4s1 | Right rear door rotary tumbler switch | 14C |
| A85m1 | Left front door central locking motor | 6D |
| A85m4 | Left front door additional door lock actuator motor | 6D |
| A85s1 | Left front door rotary tumbler switch | 5G |
| CAN B | Interior CAN | 4K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 18F |
| Code 885 | Increased theft protection | 16K |
| Code 885 | Increased theft protection | 5D |
| Code 885 | Increased theft protection | 23K |
| Code 885 | Increased theft protection | 30H |
| E1e5 | Left front turn signal lamp | 29C |
| E2e5 | Right front turn signal lamp | 24C |
| E3e1 | Left rear turn signal lamp | 15C |
| E4e1 | Right rear turn signal lamp | 19C |
| E6/5 | Left outside mirror turn signal lamp | 6H |
| E6/6 | Right outside mirror turn signal lamp | 28J |
| M14/10 | Tank cap central locking motor | 9D |
| M14/7 | Trunk lid central locking motor | 10B |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12E |
| N69/1 | Left front door control unit | 2E |
| N69/2 | Right front door control unit | 25G |
| N69/3 | Left rear door control unit | 12J |
| N69/4 | Right rear door control unit | 20J |
| N73 | Electronic ignition switch control unit | 7J |
