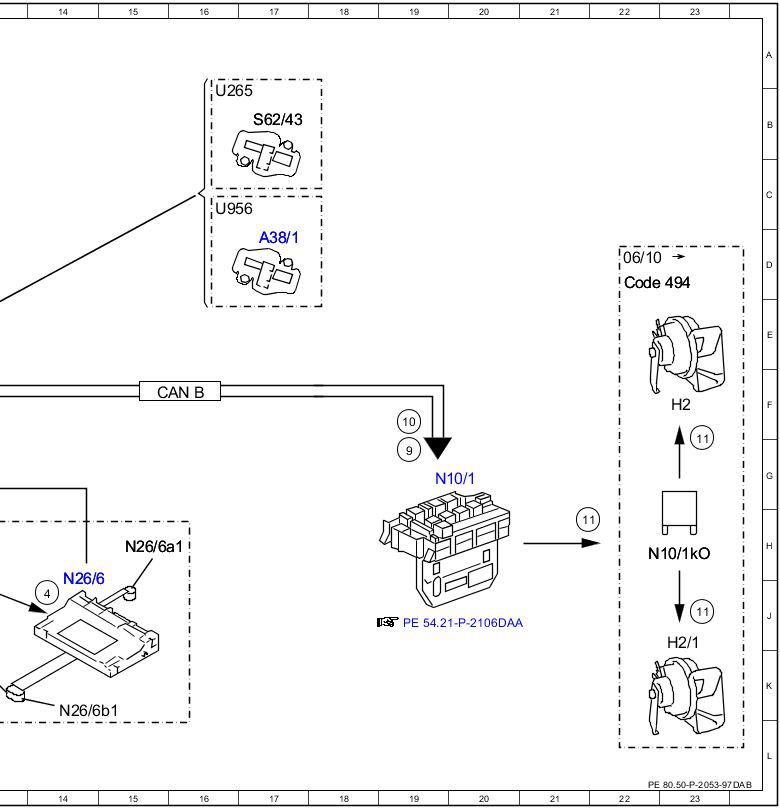

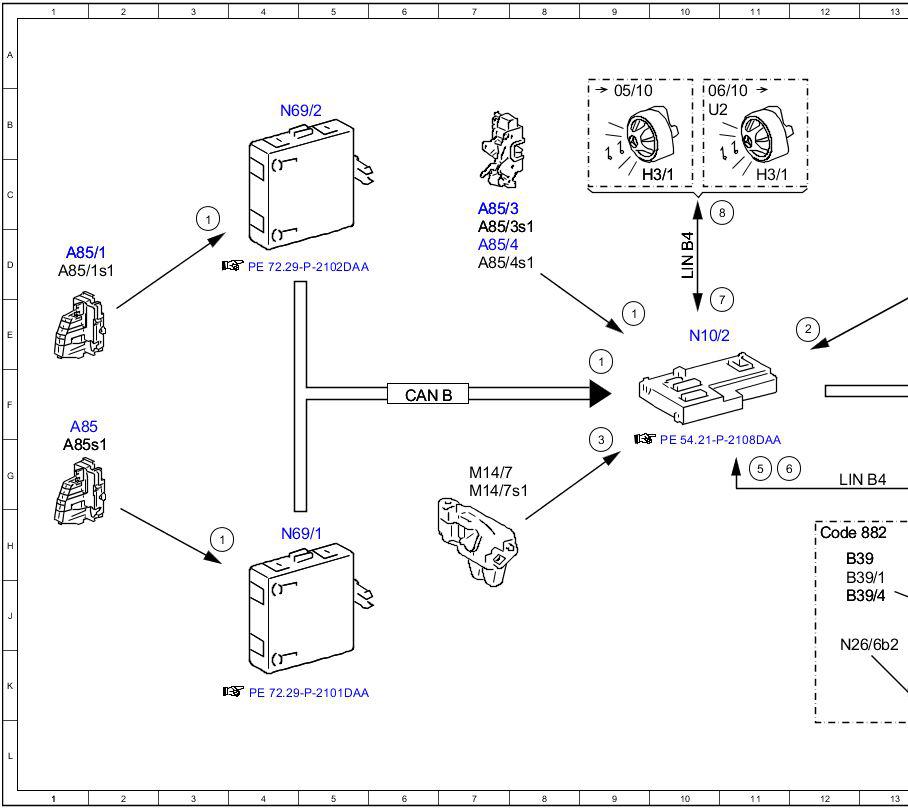

Electrical function schematic for anti-theft alarm system, alarm actuation - PE80.50-P-2053-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2 with CODE 551 (Anti-theft alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Door rotary tumbler switch, status | 3C |
| 1 | Door rotary tumbler switch, status | 3H |
| 1 | Door rotary tumbler switch, status | 9E |
| 10 | ATA [EDW] flashing, request | 19F |
| 11 | Fanfare horns, actuation | 23F |
| 11 | Fanfare horns, actuation | 23J |
| 11 | Fanfare horns, actuation | 22H |
| 2 | Engine hood contact switch, status | 12E |
| 3 | Tailgate rotary tumbler switch, status | 9G |
| 4 | Glass breakage sensor, status | 14J |
| 5 | Interior protection sensor, status | 11G |
| 6 | Inclination sensor, status | 11G |
| 7 | Communication line, status | 10E |
| 8 | Alarm siren, actuation | 11C |
| 9 | ATA [EDW] alarm, signal | 19G |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 17D |
| A85 | Left front door lock | 2F |
| A85/1 | Right front door lock | 2G |
| A85/1s1 | Right front door rotary tumbler switch | 2D |
| A85/3 | Left rear door lock | 7C |
| A85/3s1 | Left rear door rotary tumbler switch | 7C |
| A85/4 | Right rear door lock | 7D |
| A85/4s1 | Right rear door rotary tumbler switch | 7D |
| A85s1 | Left front door rotary tumbler switch | 2G |
| B39 | Left rear window glass breakage sensor | 12H |
| B39/1 | Right rear window glass breakage sensor | 12H |
| B39/4 | Rear window glass breakage sensor | 12J |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 16E |
| Code 494 | USA version | 22D |
| Code 882 | Interior protection (only with ATA [EDW]) | 12H |
| H2 | Left fanfare horn | 23F |
| H2/1 | Right fanfare horn | 23J |
| H3/1 | Alarm siren | 10C |
| H3/1 | Alarm siren | 11C |
| LIN B4 | Rear SAM LIN | 12G |
| LIN B4 | Rear SAM LIN | 10D |
| M14/7 | Central locking motor, trunk lid | 7G |
| M14/7s1 | Rotary switch trunk lid | 7G |
| N10/1 | Front SAM control unit with fuse and relay module | 20G |
| N10/1kO | Fanfare horn relay | 23H |
| N10/2 | Rear SAM control unit with fuse and relay module | 10E |
| N26/6 | Interior protection and tow-away protection control unit | 14J |
| N26/6a1 | Interior protection receiver | 15H |
| N26/6b1 | Left interior protection transmitter | 14K |
| N26/6b2 | Right interior protection transmitter | 12J |
| N69/1 | Left front door control unit | 4H |
| N69/2 | Right front door control unit | 5B |
| S62/43 | Left engine hood contact switch | 17B |
| U2 | Valid for all except USA | 11B |
| U265 | Not valid for pedestrian protection | 17B |
| U956 | Valid for pedestrian protection | 17C |
