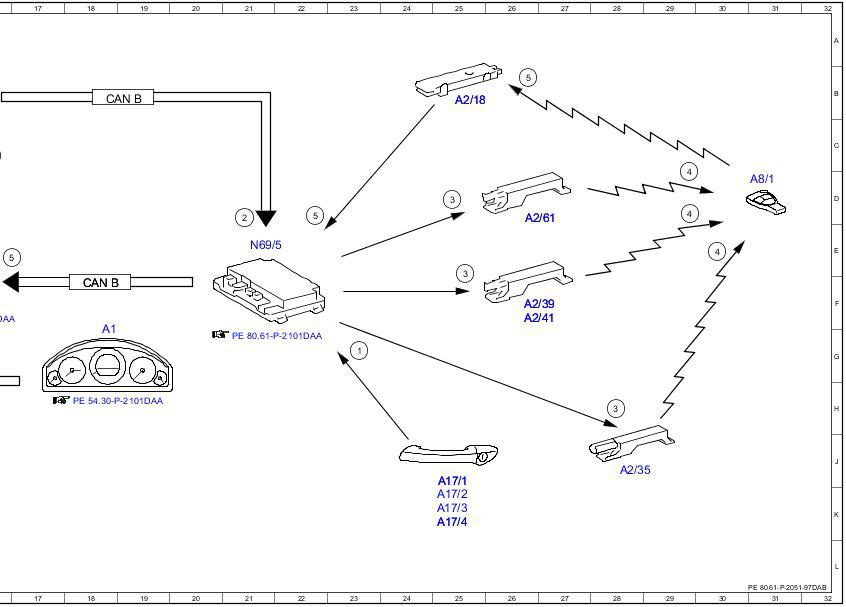

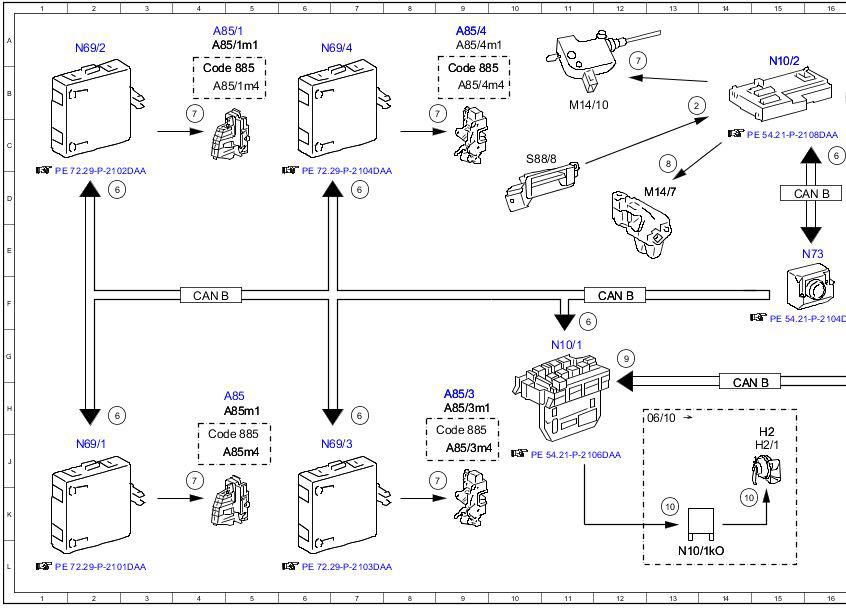

Electrical function schematic for KEYLESS-GO locking and unlocking - PE80.61-P-2051-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2 with CODE (889) KEYLESS-GO
| Code: | Designation: | Position: |
|---|---|---|
| 1 | KEYLESS-GO door handle, status | 23G |
| 10 | Fanfare horns, actuation | 13K |
| 10 | Fanfare horns, actuation | 15K |
| 2 | Tailgate external operation switch, status | 21D |
| 2 | Tailgate external operation switch, status | 14B |
| 3 | KEYLESS-GO antenna, actuation | 25E |
| 3 | KEYLESS-GO antenna, actuation | 25D |
| 3 | KEYLESS-GO antenna, actuation | 28H |
| 4 | Transmitter key, request | 29C |
| 4 | Transmitter key, request | 29D |
| 4 | Transmitter key, request | 30E |
| 5 | Access authorization code, signal | 26B |
| 5 | Access authorization code, signal | 22D |
| 5 | Access authorization code, signal | 17E |
| 6 | Open/close central locking, request | 16C |
| 6 | Open/close central locking, request | 11F |
| 6 | Open/close central locking, request | 7D |
| 6 | Open/close central locking, request | 7H |
| 6 | Open/close central locking, request | 2D |
| 6 | Open/close central locking, request | 2H |
| 7 | Central locking motor, actuation | 4C |
| 7 | Central locking motor, actuation | 9C |
| 7 | Central locking motor, actuation | 4J |
| 7 | Central locking motor, actuation | 9J |
| 7 | Central locking motor, actuation | 12B |
| 8 | Tailgate central locking motor, actuation | 13C |
| 9 | Acoustic locking feedback, status | 12G |
| A1 | Instrument cluster | 18G |
| A17/1 | Left front KEYLESS GO door handle | 25J |
| A17/2 | Right front KEYLESS GO door handle | 25J |
| A17/3 | Left rear KEYLESS GO door handle | 25K |
| A17/4 | Right rear KEYLESS GO door handle | 25K |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 25B |
| A2/35 | Trunk KEYLESS GO antenna | 28J |
| A2/39 | Left rear door KEYLESS GO antenna | 27F |
| A2/41 | Right rear door KEYLESS GO antenna | 27F |
| A2/61 | Interior KEYLESS GO antenna | 26D |
| A8/1 | Transmitter key | 31D |
| A85 | Left front door lock | 4H |
| A85/1 | Right front door lock | 5A |
| A85/1m1 | Right front door central locking motor | 5A |
| A85/1m4 | Right front door additional door lock actuator motor | 5B |
| A85/3 | Left rear door lock | 9H |
| A85/3m1 | Left rear door central locking motor | 9H |
| A85/3m4 | Left rear door additional door lock actuator motor | 9J |
| A85/4 | Right rear door lock | 9A |
| A85/4m1 | Right rear door central locking motor | 9A |
| A85/4m4 | Right rear door additional door lock actuator motor | 9B |
| A85m1 | Left front door central locking motor | 5H |
| A85m4 | Left front door additional door lock actuator motor | 5J |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 16D |
| CAN B | Interior CAN | 19B |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 14H |
| Code 885 | Increased theft protection | 5B |
| Code 885 | Increased theft protection | 9B |
| Code 885 | Increased theft protection | 4J |
| Code 885 | Increased theft protection | 9J |
| H2 | Left fanfare horn | 15H |
| H2/1 | Right fanfare horn | 15J |
| M14/10 | Tank cap central locking motor | 11B |
| M14/7 | Trunk lid central locking motor | 12D |
| N10/1 | Front SAM control unit with fuse and relay module | 11G |
| N10/1kO | Fanfare horn relay | 13K |
| N10/2 | Rear SAM control unit with fuse and relay module | 15B |
| N69/1 | Left front door control unit | 2J |
| N69/2 | Right front door control unit | 2A |
| N69/3 | Left rear door control unit | 6J |
| N69/4 | Right rear door control unit | 7A |
| N69/5 | KEYLESS-GO control unit | 21E |
| N73 | Electronic ignition switch control unit | 16E |
| S88/8 | Trunk lid external operation switch | 11C |
