Liftgate control unit, component description - GF80.20-P-6082FL
MODEL 212.2
Location

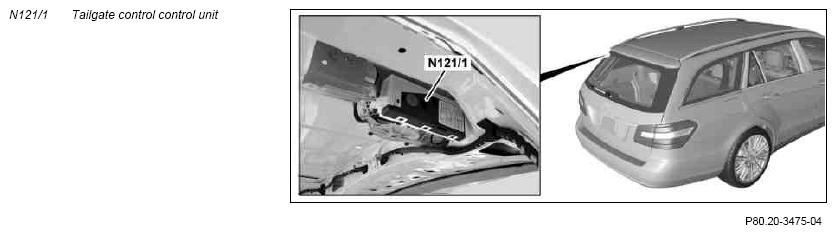

The liftgate control unit is fastened in the cargo area below the cover.
Task
The liftgate control unit has the following purposes:
- Reading in of sensors, pickups and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors, pickups and signals
The input factors are read in with the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals from the following components are read via a direct line:
- Liftgate control Hall sensor (M51/3b1)
- Liftgate control position sensor (M51/3b2)
Interior CAN
The following signals are read in over the interior CAN:
By the left front door control unit (N69/1):
- Status of driver liftgate control button (S15/3)
By the rear SAM control unit with fuse and relay module (N10/2):
- Status of liftgate rotary tumbler switch (M14/7s1)
- Status of liftgate control button (S62/36)
- Status of liftgate external operation switch (S88/8)
- Access authorization for transmitter key (A8/1) via FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18)
From the instrument cluster (A1):
- Vehicle speed signal
By the electronic ignition switch control unit (N73):
- Circuit status circuit 15
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Interior CAN
Direct line
The following components are actuated with a direct line:
- Liftgate control warning buzzer (H4/60)
- Liftgate control electric motor (M51/3m1)
- Liftgate control magnetic clutch (M51/3y1)
Interior CAN
The following component is actuated via the interior CAN:
By the rear SAM control unit:
- Liftgate locking element (M14/31)
| Wiring diagram for liftgate control unit | PE72.20-P-2104-97DAA |
