Remove/install crankshaft position sensor - AR15.12-P-2133SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221, 222

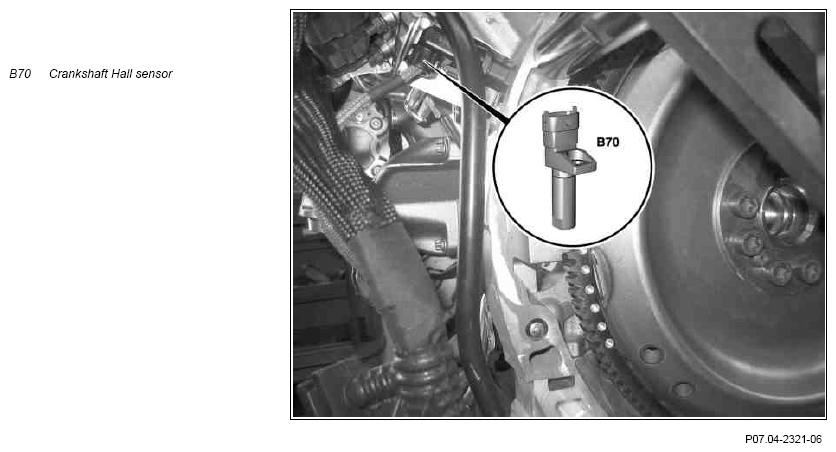

Shown on engine 642 in model 221
| Remove/install | |||
| 1 | Turn transmitter key in electronic ignition lock control unit to position "0" | ||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 2 | Open engine hood | ||
| 3 | Remove corresponding bottom section of soundproofing | MODEL 222 with ENGINE 642 | AR61.20-P-1105LF |
| MODEL 221 with ENGINE 642 without CODE Z07 (Top protection) | AR61.20-P-1105SX | ||
| MODEL 207, 212, 218 with ENGINE 642 | AR94.30-P-5300EW | ||
| 4 | Remove heat shield for crankshaft Hall sensor (B70) | ||
| 5 | Disconnect electrical connection on crankshaft Hall sensor (B70) | ||
| 6 | Remove screw/bolt for crankshaft Hall sensor (B70) | *BA15.10-P-1001-03G | |
| 7 | Remove crankshaft Hall sensor (B70) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read out fault memory and delete if necessary | ||
| MODEL 222 with ENGINE 642 | AD00.00-P-2000-04B | ||
| MODEL 207, 212, 218, 221 with ENGINE 642 | AD00.00-P-2000-04A |
HALL SENSOR
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA15.10-P-1001-03G | Crankshaft position sensor to engine block | Nm | 9 |
