Remove/install crankshaft position sensor - AR15.12-P-2133EMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 156 in MODEL 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from grazing or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove left catalytic converter | AR49.10-P-7100EW | |

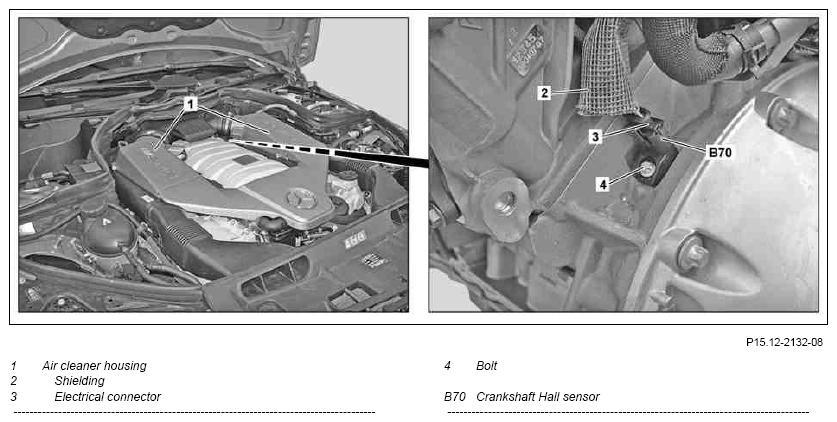

| 2 | Disconnect the electrical connector (3) at the Hall sensor (B70) | ||
| 3 | Remove bolt (4) and remove the Hall sensor (B70) | *BA15.12-P-1001-01K | |
| 4 | Install in the reverse order | ||
| 5 | Connect STAR DIAGNOSIS and read fault memory | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
ECI IGNITION SYSTEM
| Number | Designation | Engine 156, 159 | ||
|---|---|---|---|---|
| BA15.12-P-1001-01K | Crankshaft position sensor on crankshaft housing | M6 | Nm | 8 |
