Remove/install crankshaft position sensor - AR15.12-P-2133CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221
Shown on engine 651.911
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1.1 | Remove underfloor paneling | Model 166 | AR61.30-P-1001GQ |
| 1.2 | Remove rear bottom part of soundproofing | Model 172 | AR94.30-P-5300W |
| Model 204.0/2/3, 207, 212, 218 | AR94.30-P-5300EW | ||
| 1.3 | Detach lower engine compartment paneling | Model 221 | AR61.20-P-1105SX |
| Model 204.9 | AR61.20-P-1105CY | ||

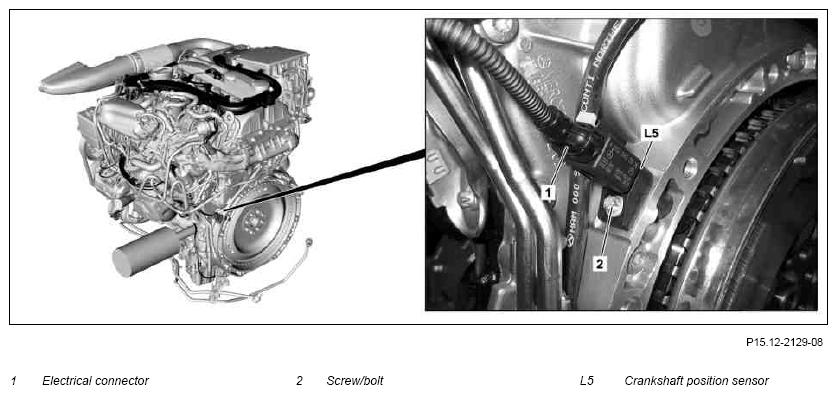

| 2 | Disconnect electrical connector (1) on crankshaft position sensor (L5) | ||
| 3 | Remove screw/bolt (2) and remove crankshaft position sensor (L5) | *BA15.10-P-1001-03H | |
| 4 | Install in the reverse order |
POSITION SENSOR
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA15.10-P-1001-03H | Crankshaft position sensor to cylinder crankcase | Nm | 8 |
