Remove/install crankshaft Hall sensor - AR15.12-P-2136EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove air filter housing | AR09.10-P-1150EWS | |
| 2 | Remove hot film mass air flow sensor | AR07.07-P-1453EW | |
| 3 | Remove air duct housing | AR09.20-P-0080EW | |
| 4 | Release and disconnect electrical connector from Hall sensor (B70) | ||

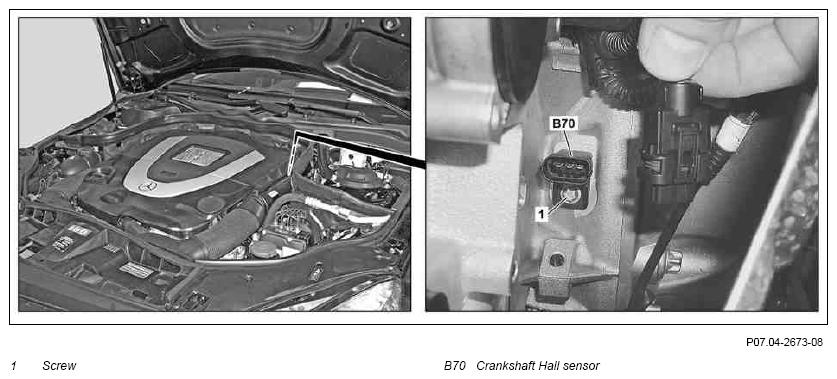

| 5 | Remove bolt (1) | ||
| *BA15.10-P-1001-03E | |||
| 6 | Pull Hall sensor (B70) out of cylinder crankcase | ||
| 7 | Install in the reverse order | ||
| 8 | Carry out first initialization and then sensor rotor adaptation using STAR DIAGNOSIS | Only when replacing the Hall sensor (B70)
|
POSITION SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 | 8 |
