Remove/install camshaft Hall sensor - AR15.10-P-2000SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221, 222
MODIFICATION NOTES
| 13.3.13 | Read out fault memory with STAR DIAGNOSIS, added | Operation step 9 |

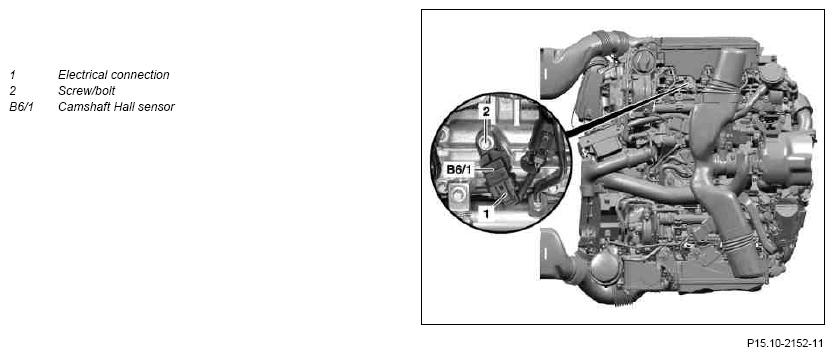

shown on model 221
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove engine cover | ENGINE 642 in MODEL 207, 212, 218, 221, 222 | |
| ENGINE 642 in MODEL 221 |
AR01.10-P-2405SXI | ||
| 3 | Release and disconnect electrical connection (1) | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 4 | Remove air filter element | ||
| ENGINE 642 in MODEL 221 with side-mounted air filter elements | AP09.10-P-0980SXI | ||
| ENGINE 642 in MODEL 222 | AP09.10-P-0980HA | ||
| ENGINE 642 in MODEL 221 with side-mounted air filter elements | AP09.10-P-0980GZB | ||
| MODEL 207, 212, 218 with ENGINE 642 | AP09.10-P-0980NEU | ||
| 5 | Remove noise damper | ||
| 6 | Remove screw/bolt (2) | *BA15.10-P-1002-03G | |
| 7 | Remove camshaft Hall sensor (B6/1) | ||
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory with STAR DIAGNOSIS and clear if necessary | ||
| MODEL 222 with ENGINE 642 | AD00.00-P-2000-04B | ||
| MODEL 207, 212, 218, 221 with ENGINE 642 | AD00.00-P-2000-04A | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
HALL SENSOR
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA15.10-P-1002-03G | Camshaft position sensor to cylinder head cover | Nm | 8 |
