Remove/install camshaft Hall sensor - AR15.10-P-2000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

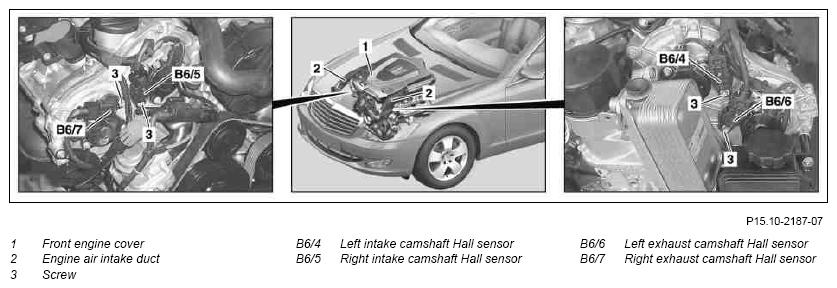

| 1 | Pull out front engine cover (1) upwards from mounts | AR09.10-P-1150EWS | |
| 2 | Remove left or right engine air intake duct (2) upstream of air filter | ||
| 3 | Disconnect connector from respective camshaft Hall sensor | ||
| 4 | Remove bolt (3) and pull respective camshaft Hall sensor out of front cover on cylinder head | ||
| *BA15.10-P-1002-03E | |||
| 5 | Install in the reverse order | ||
| 6 | Read out fault memory with STAR DIAGNOSIS | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Check for oil leaks with engine running |
POSITION SENSOR
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BA15.10-P-1002-03E | Bolt, camshaft Hall sensor to front cover on cylinder head | Nm | 8 | 8 |
