Remove/install camshaft Hall sensor - AR15.10-P-2000ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207

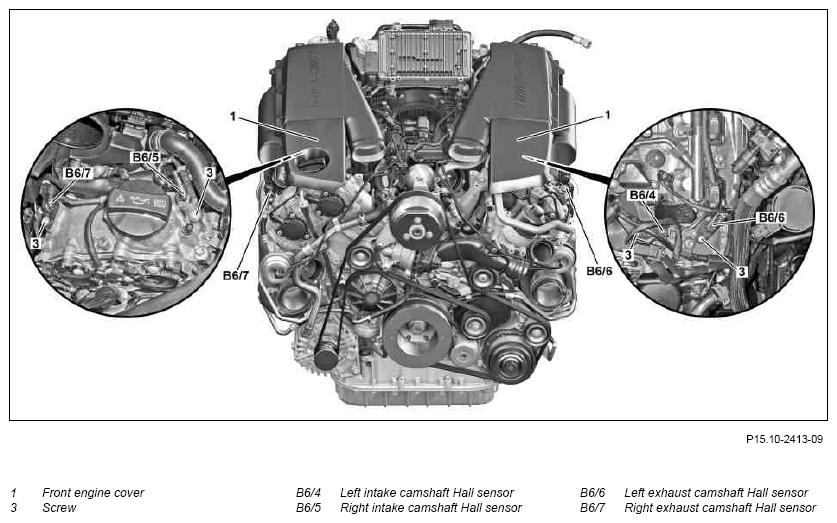

Shown on model 218.373
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | ||
| 2.1 | Remove front engine cover (1) | When removing intake camshaft Hall sensors (B6/4, B6/5) | |
| 2.2 | Remove engine intake air duct upstream of air filter | When removing exhaust camshaft Hall sensors (B6/6, B6/7) | |
| 3 | Remove purge line from cylinder head cover | When removing the Hall sensor on the left of the exhaust camshaft (B6/6). | |
| 4 | Remove electrical connection from the respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) | ||
| 5 | Remove bolt (3) and pull respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) out of the cylinder head cover | ||
| *BA15.10-P-1006-03E | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | AD00.00-P-2000-04A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run, checking the engine for proper operation and leaks |
POSITION SENSOR
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 8 | 8 |
