Separate outer side longitudinal member - AR63.30-P-1050-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 176, 212, 218, 242, 246, 292

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Shown on model 166

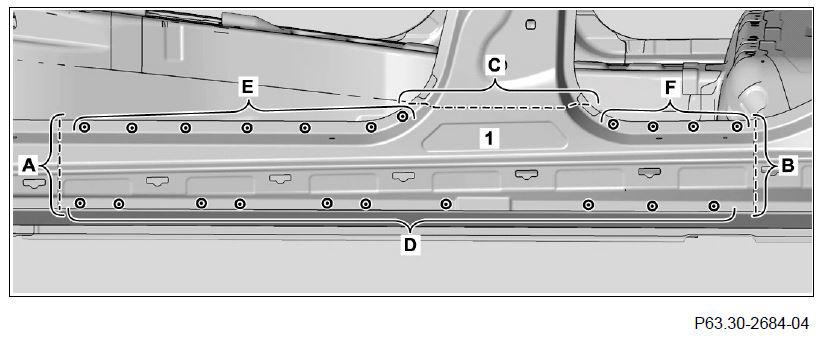

Fig 1: Outer Side Longitudinal Member Separation Points

Courtesy of MERCEDES-BENZ USA

Scribe separation points on outer side longitudinal member (1) (areas A, B and C).
Determine separation points according to degree of damage (areas A and B). Cut outer side longitudinal member (1) between upper and lower embossment of plane surface (area C).
Cut outer side longitudinal member (1) at separation points (areas A, B and C).
Do not make the cuts too deep. Otherwise the components below can be damaged and weakened.
Expose spot welds on outer side longitudinal member (1) (areas D, E and F).
Cut out spot welds on outer side longitudinal member (1) (areas D, E and F).
Remove damaged outer side longitudinal member (1).

Model 117, 156, 176, 242, 246

Fig 2: Drilling 10 MM Wax Holes In B-Pillar

Courtesy of MERCEDES-BENZ USA

Model 117, 156, 176, 242, 246 Drill 10 mm wax holes in B-pillar (2) (areas G).
Model 117

Dimensions MODEL 117:
1. = 25_mm
2. = 145 mm
Model 156

Dimensions MODEL 156:
1. = 25_mm
2. = 120 mm
Model 176, 242, 246

Dimensions MODEL 176, 242, 246:
1. = 25_mm
2. = 80_mm
Model 117, 156, 176, 242, 246 Deburr drill holes (areas G).

Shown on model 166

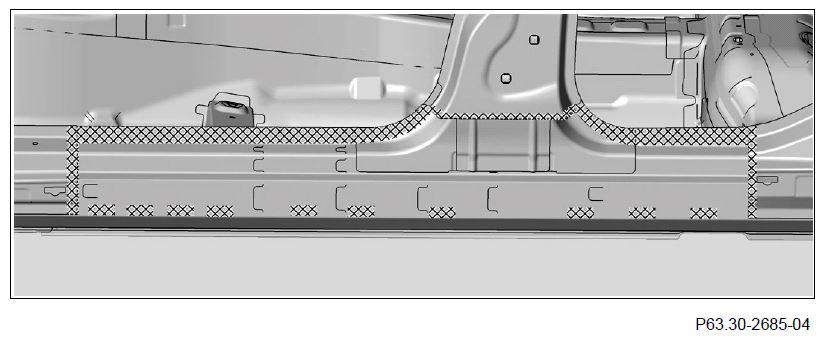

Fig 3:

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.
Sand down spot weld flanges to bare metal on both sides.
Remove shavings and drill chips.
Coat insides of spot welding flanges with zinc dust paint.
