Remove outer rear wheel well - AR63.10-P-0660-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

The following steps are shown on model 212.0.

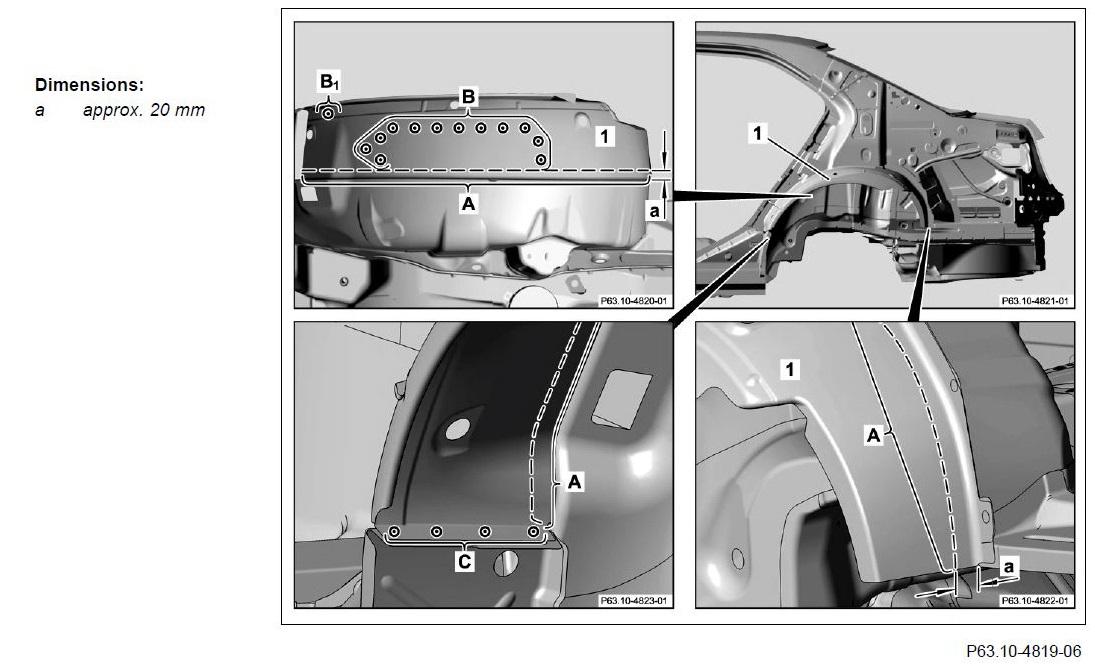

Fig 1: Outer Rear Wheel Well Separation Point

Courtesy of MERCEDES-BENZ USA

Scribe separation point on outer rear wheel well (1) (area A).
Cut outer rear wheel well (1) at separation point (area A).
Do not damage C-pillar.
Expose spot welds on outer rear wheel well (1) (areas B, B₁ and C).
Cut out spot welds on outer rear wheel well (1) (areas B, B₁ and C).
Remove damaged outer rear wheel well (1)

Fig 2: Outer Rear Wheel Well Crosshatched Areas

Courtesy of MERCEDES-BENZ USA

Sand connection surfaces down to bare metal in the crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Remove shavings and drill chips.
Coat insides of spot weld flanges with zinc dust paint.
