Remove inner C-pillar side wall - AR63.10-P-0700-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /1

  1. Expose spot welds on outer C-pillar (1) (areas A and B).
  2. Cut out spot welds on outer C-pillar (1) areas A and B).
  3. Heat outer C-pillar (1) in crosshatched area.

    IMPORTANT Cross-hatched area is bonded.

  4. Remove damaged outer C-pillar (1).
    Fig 1: Outer C-Pillar Spot Weld Areas
    G10241569Courtesy of MERCEDES-BENZ USA

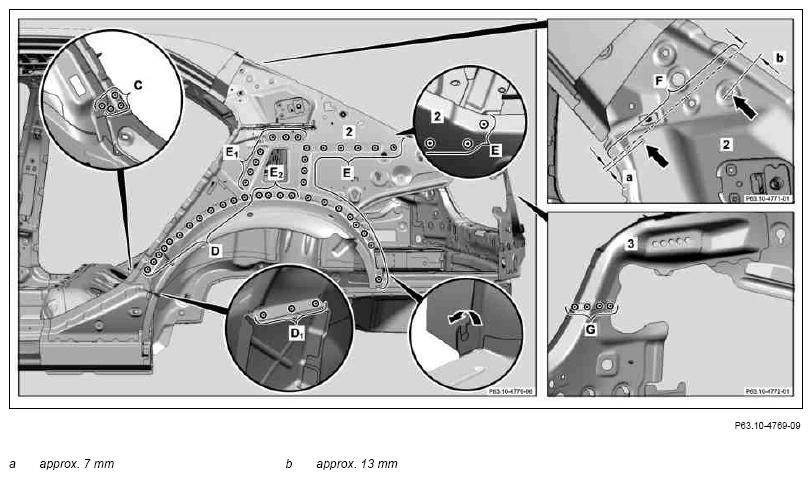

    Fig 2: Inner C-Pillar Spot Weld Areas
    G10241570Courtesy of MERCEDES-BENZ USA

    Dimensions:

  5. Loosen water drain hose from retaining clips and remove.
  6. Scribe separation point on inner C-pillar (2) (area F).

    IMPORTANT Determine dimensions a and b for separation points on marked holes (arrows).

  7. Cut inner C-pillar (2) at separation point (area F).
  8. Expose spot welds on inner C-pillar (2) and reinforcement (3) (areas C, D, D1 , E, E1 , E2 and G).
  9. Cut out spot welds on inner C-pillar (2) and reinforcement (3) (areas C, D, D1 , E, E1 , E2 and G).
  10. Bend open sheet metal lug on inner C-pillar (2) (arrows).
  11. Heat inner C-pillar (2) in crosshatched areas.

    IMPORTANT Cross-hatched areas are bonded.

  12. Remove damaged inner C-pillar (2) and reinforcement (3).
    Fig 3: Heating Inner C-Pillar In Crosshatched Areas
    G10241571Courtesy of MERCEDES-BENZ USA
  13. Sand connection surfaces down to bare metal in the cross-hatched areas.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides.

  14. Remove shavings and drill chips.
  15. Coat insides of spot weld flanges with zinc dust paint.

    NOTES To prevent adhesion problems, do not coat bonding surfaces with zinc dust paint (area XX).

    IMPORTANT Observe pretreatment of bonding surfaces.

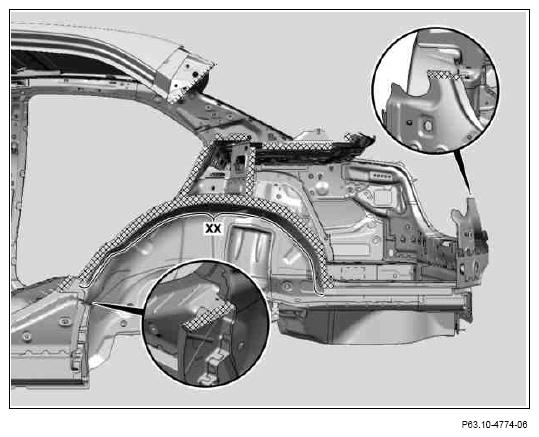

    Fig 4: Coating Insides Of Spot Weld Flanges With Zinc Dust Paint (Except Area XX)
    G10241572Courtesy of MERCEDES-BENZ USA
