Remove C-pillar - AR63.20-P-0500-01ES
MODEL 212.2
In principle replacement parts required for this repair can be replaced completely. Ensure that the standard joining and bonding connections are observed or are coordinated with the responsible Daimler departments in individual cases. On cut panels also ensure that the joints to the present paneling are accessible for later cavity preservation and that the minimum distance between foam-protected areas and connection points is approx. 100 mm.

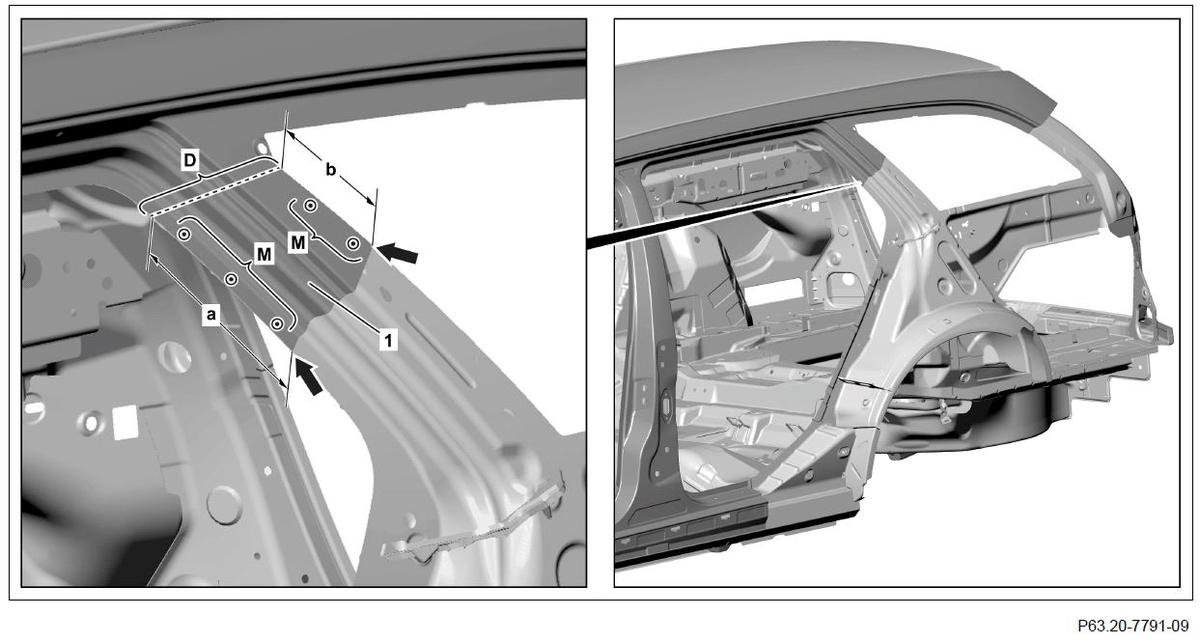

- Scribe separating point on C-pillar paneling (1) (area D).
Measure dimensions a and b from rear fender cut (Y-markings, arrows).
- Cut C-pillar paneling (1) on separating point (area D).
Do not damage outer C-pillar below.
- Expose spot welds on C-pillar paneling (1) and cut out (area M).
- Remove C-pillar paneling (1).

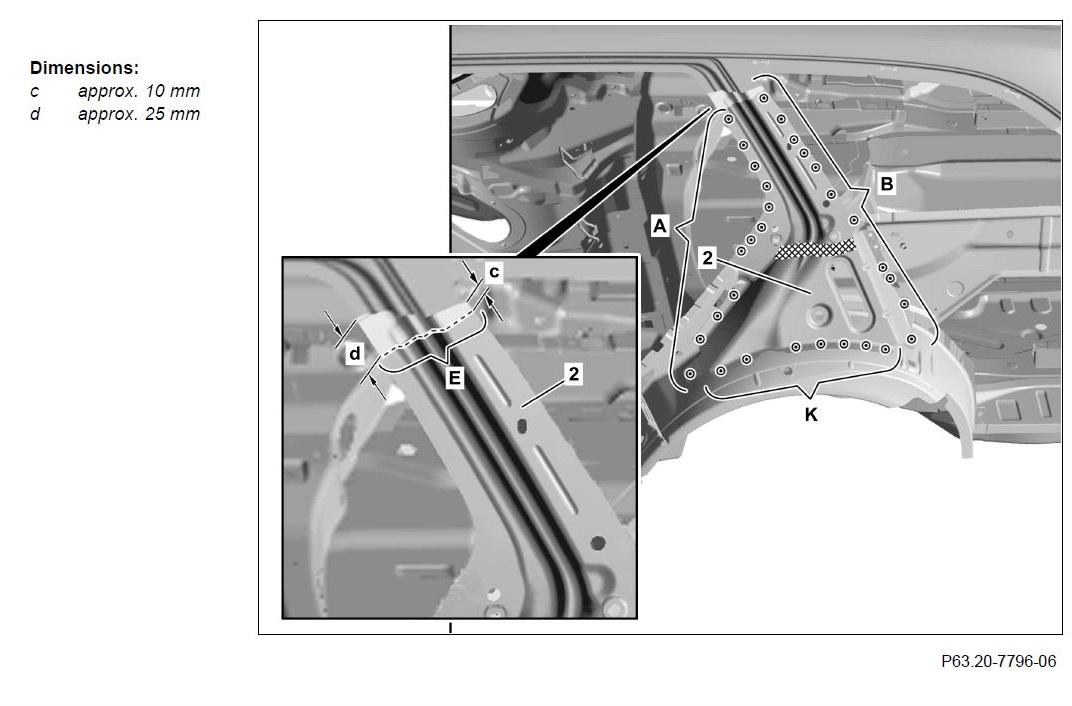

- Expose spot welds on outer C-pillar (2) and cut out (areas A, B and K).
- Scribe separating points on outer C-pillar (2) and cut (area E).
Measure dimensions c and d from C-pillar paneling cut.
- Heat outer C-pillar (2) in cross-hatched area.
Cross-hatched area is bonded.
- Remove damaged outer C-pillar (2).
- Bend open sheet metal lug on inner C-pillar (3) (arrow).

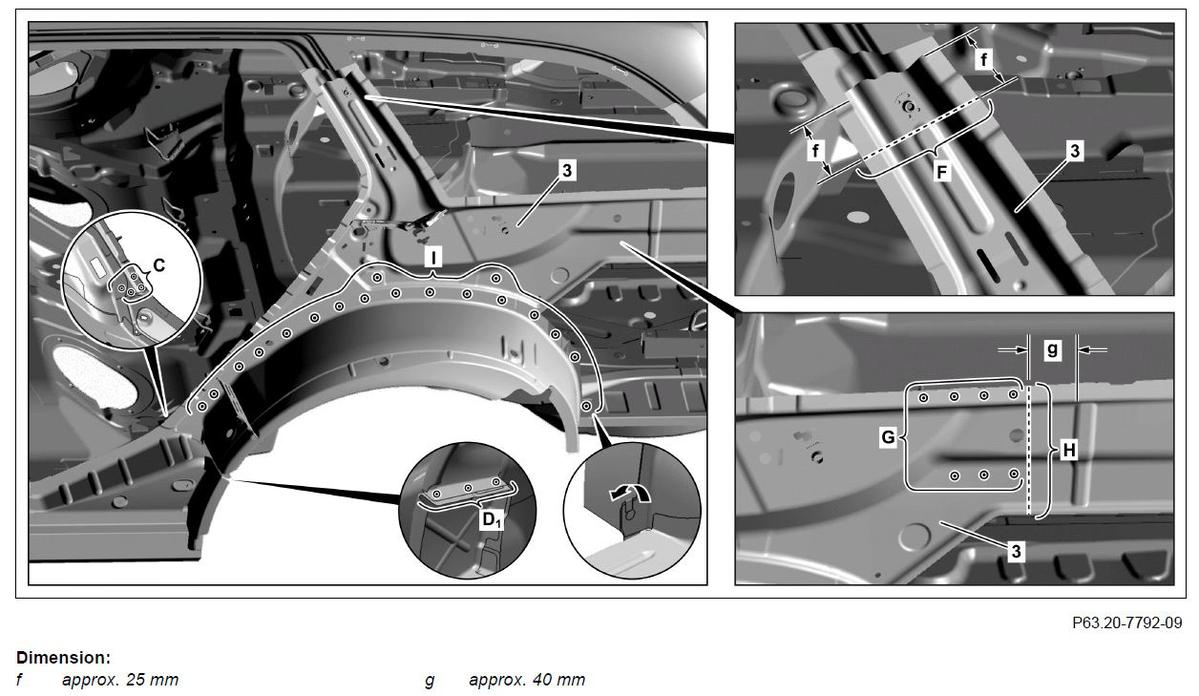

- Expose spot welds on inner C-pillar (3) and cut out (areas C, G, I and D1).
- Scribe separating points on inner C-pillar (3) and cut (area F and H).
Measure dimensions f from outer C-pillar cut (2). Measure dimension g from bead as shown.

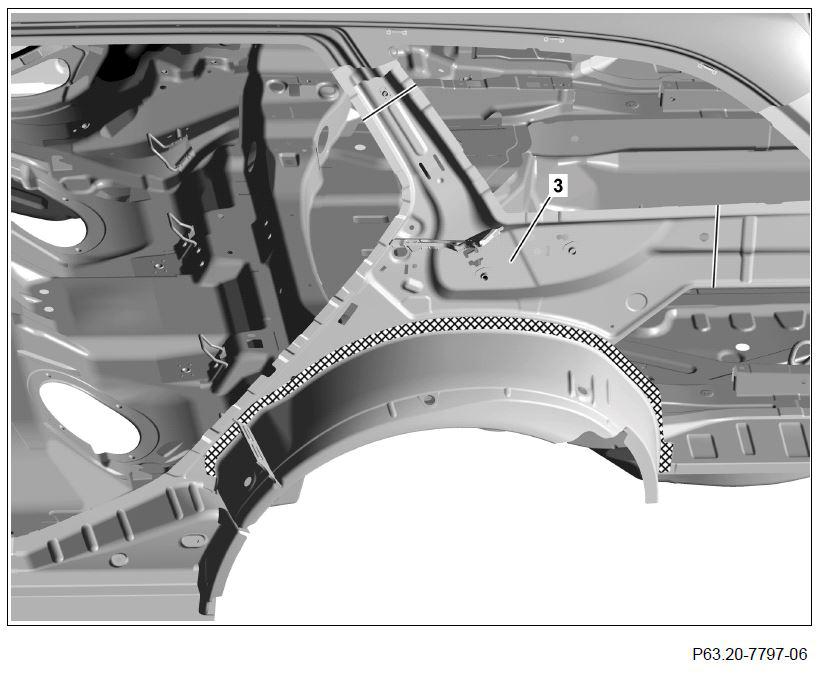

- Heat inner C-pillar (3) in cross-hatched area.
Cross-hatched area is bonded.
- Remove damaged inner C-pillar (3).

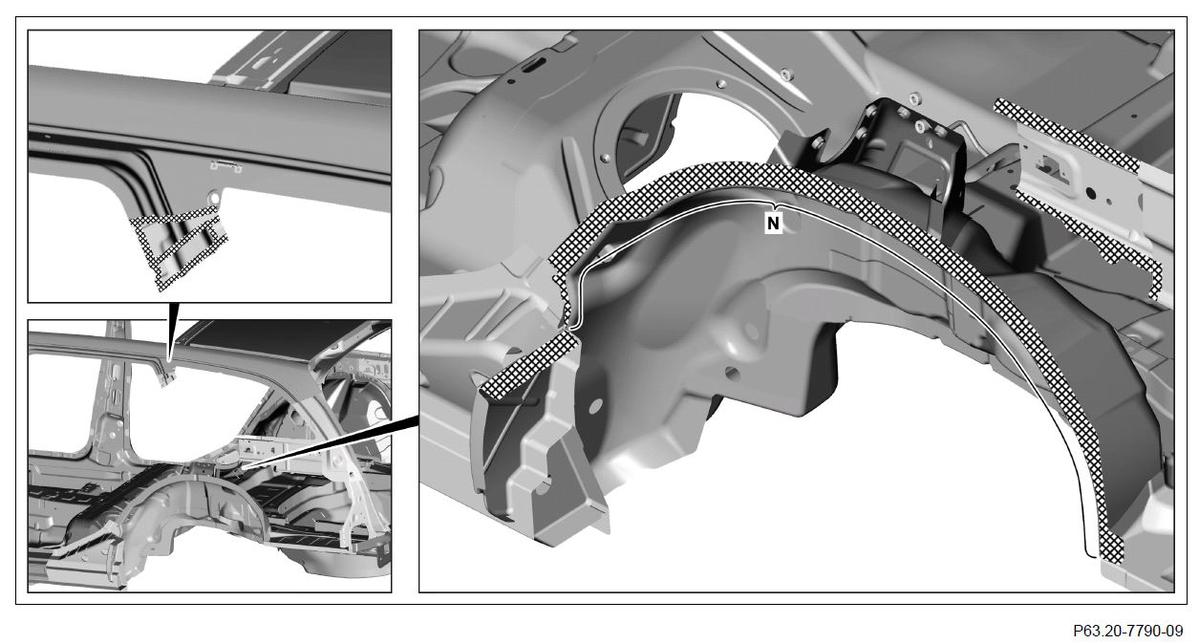

- Sand connection surfaces down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
Observe pretreatment of bonding surfaces (area N).
- Remove shavings and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
To prevent adhesion problems, do not coat bonding surfaces with zinc dust paint.
