Prepare rear wheel well section for installation - AR63.10-P-0662-02CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 207.3/4, 212, 218, 204

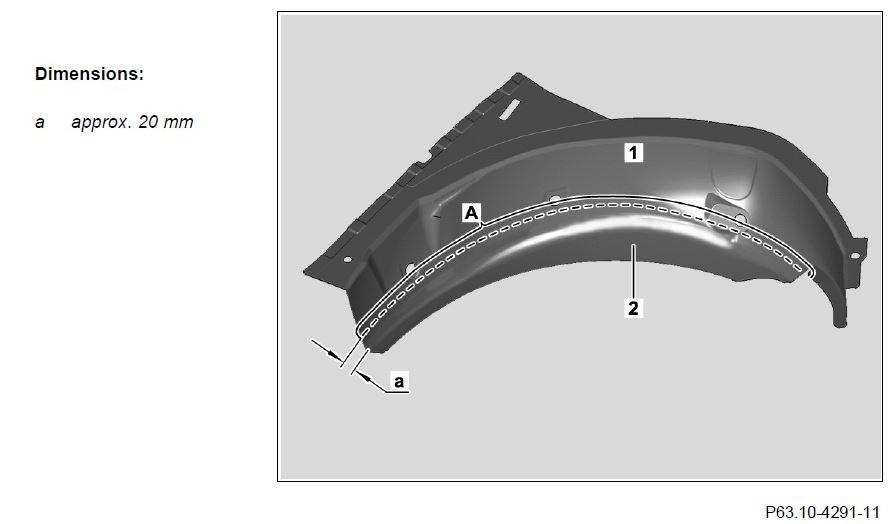

Shown on new part for model 204.0
- Scribe separation point on outer rear wheel well (1) (area A).
Scribe separation point along bead offset toward inside (area A).
- Cut outer rear wheel well (1) at separation point (area A).
- Remove outer rear wheel well section (2).
