Prepare outer side longitudinal member - AR63.30-P-1050-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 176, 212, 218, 242, 246, 292

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

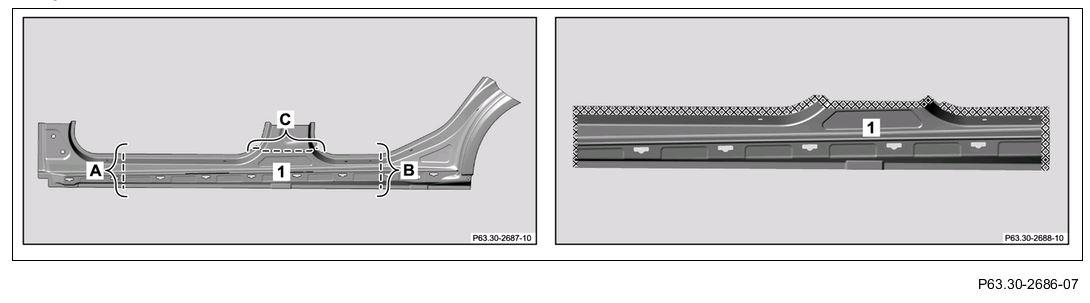

Fig 1: Outer Side Longitudinal Member Separation Points

Courtesy of MERCEDES-BENZ USA

Scribe separation points on outer side longitudinal member (1) (areas A, B and C).
Transfer position on separation points from vehicle (areas A, B and C).
Cut outer side longitudinal member (1) at separation points (areas A, B and C).
Grind mating surfaces on outer side longitudinal member (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot welding flanges with zinc dust paint.
