Prepare outer rear wheel well for installation - AR63.10-P-0670-05EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218

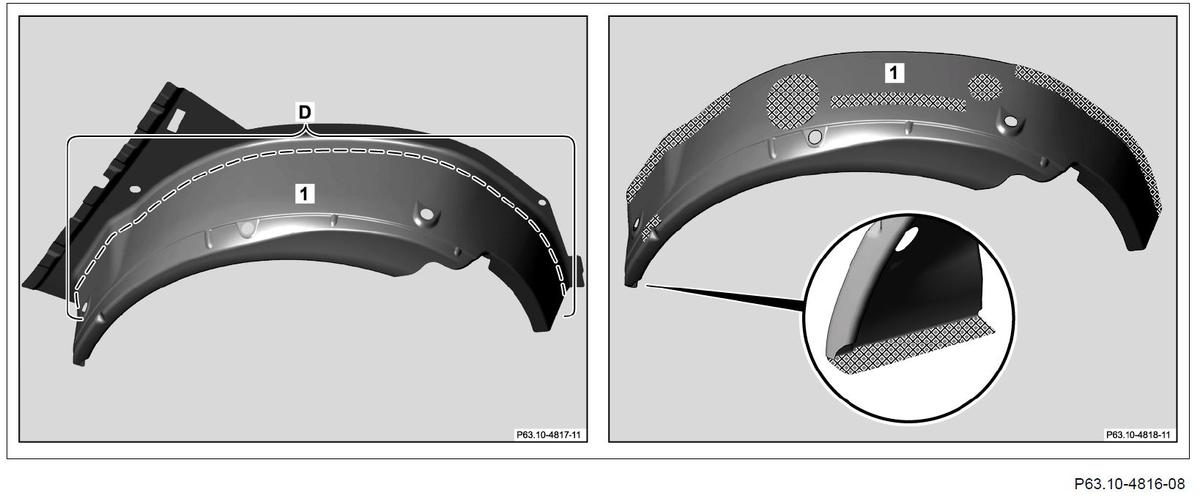

- Scribe separation point on outer rear wheel well (1) (area D).
- Cut outer rear wheel well (1) at separation point (area D).
- Remove section from outer rear wheel well (1).
- Grind mating surfaces on outer rear wheel well (1) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
