Prepare inner C-pillar side wall - AR63.10-P-0700-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /1

Scribe separation point on inner C-pillar (2) (area J).
Transfer separation point from vehicle.
Cut inner C-pillar (2) at separation point (area J).
Cut out spot welds and laser seam connection at rear shelf reinforcement (4) (areas H, I and K).
Cut out spot weld in area K from inside.
Remove rear shelf reinforcement (4).

Fig 1: Rear Shelf Reinforcement Spot Weld Areas
Courtesy of MERCEDES-BENZ USA

Fig 2: Grinding Mating Surfaces On Inner C-Pillar In Crosshatched Areas
Courtesy of MERCEDES-BENZ USA
Grind mating surfaces on inner C-pillar (2) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot welding flange on inner C-pillar (2) with zinc dust paint.
To prevent adhesion problems, do not coat bonding surfaces with zinc dust paint (area L).

Observe pretreatment of bonding surfaces (area L).
Grind mating surfaces on outer C-pillar (1) and reinforcement (3) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot weld flange on outer C-pillar (1) and reinforcement (3) with zinc dust paint.

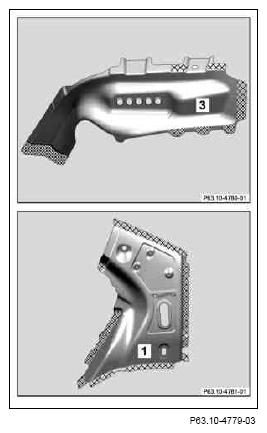

Fig 3: Grind Mating Surfaces On Outer C-Pillar And Reinforcement In Crosshatched Areas
Courtesy of MERCEDES-BENZ USA
