Prepare complete A-pillar for installation - AR63.20-P-1100-09EW

MODEL 212

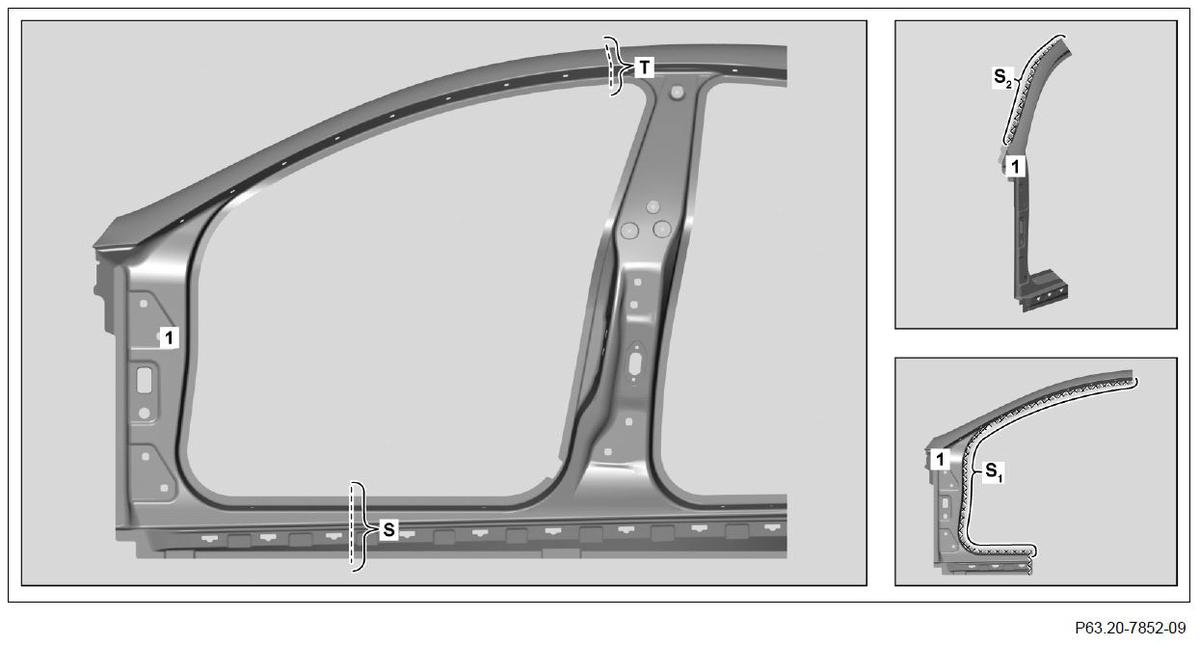

Fig 1: A-Pillar Outer Paneling Separating Points

Courtesy of MERCEDES-BENZ USA

1. Scribe separating point on A-pillar outer paneling (1) and cut (areas S and T).

   Take separation points from vehicle.

2. Grind mating surfaces down to bare metal on A-pillar outer paneling (1) in crosshatched areas.

   Do not coat bonding surfaces with zinc dust paint (area S₁ and S₂ ). Otherwise adhesion problems 2 can occur. Observe pretreatment of bonding surfaces.

   Grind spot weld flanges down to bare metal on both sides.

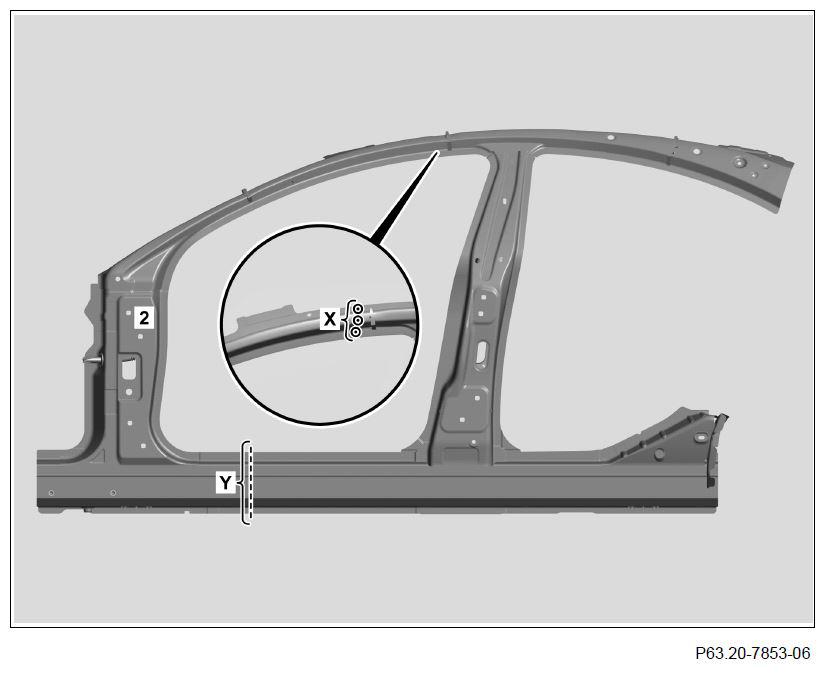

Fig 2: A-Pillar Reinforcement Separating Point
Courtesy of MERCEDES-BENZ USA
3. Scribe separating point on A-pillar reinforcement (2) and cut (area Y).

   Transfer separation point from vehicle.

4. Cut out spot welds on A-pillar reinforcement (2) from inside (area X).
5. Remove remaining section from A-pillar reinforcement (2)

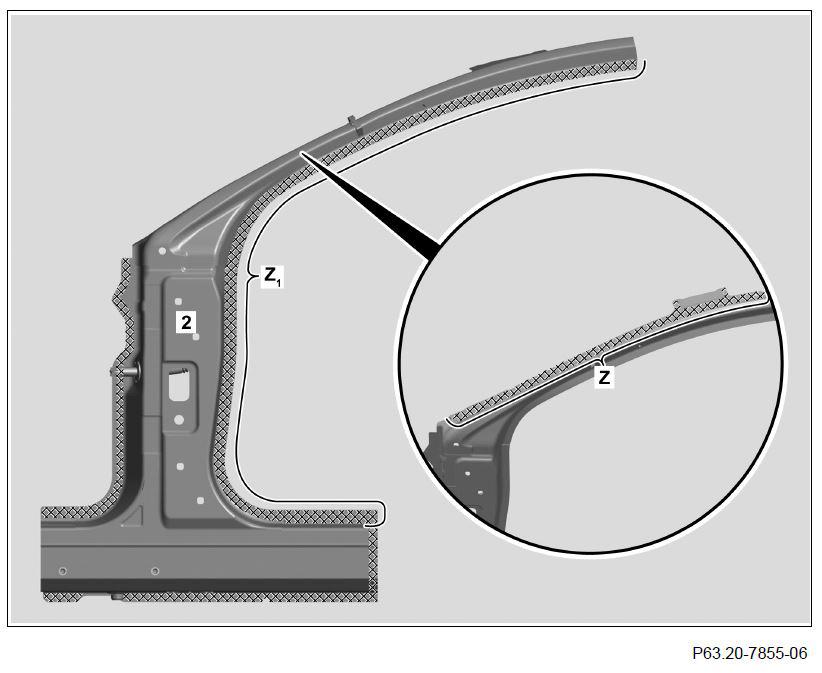

Fig 3: A-Pillar Reinforcement Crosshatched Areas
Courtesy of MERCEDES-BENZ USA
6. Grind mating surfaces down to bare metal on A-pillar reinforcement (2) in crosshatched areas.

   Grind spot weld flanges down to bare metal on both sides.

7. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas Z and Z1). Otherwise adhesion problems can occur. Observe pretreatment of bonding surfaces.

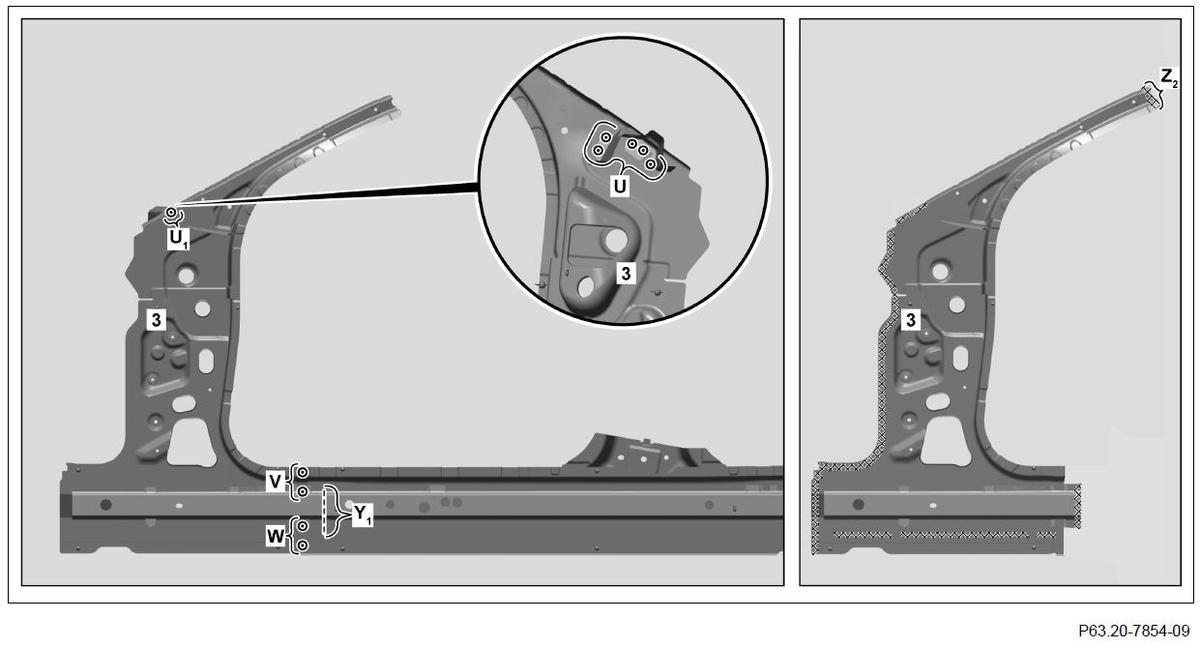

Fig 4: Inner A-Pillar Separating Line
Courtesy of MERCEDES-BENZ USA
8. Scribe separating line on inner A-pillar (3) and cut (area Y₁ ).

   Transfer separating from vehicle.

9. Expose spot welds on inner A-pillar (3) and cut out (areas U, U₁ , V and W).
10. Grind mating surfaces down to bare metal on inner A-pillar (3) in crosshatched areas.
11. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (area Z2). Otherwise adhesion problems can occur. Observe pretreatment of bonding surfaces.
