Install section of rear fender - AR63.50-P-1450-03ELX

MODEL 204.2, 204.9, 212.2, 218.9

The following operation steps are shown on the left side of the vehicle on MODEL 218.9 and must be performed analogously on the right side in the event of damage.

Fig 1: Rear Fender Rivet Holes Area

Courtesy of MERCEDES-BENZ USA

1. Install rear fender (1), rear door, taillamp and rubber seal and fit.
2. Check and adjust gap dimensions.
3. Fix rear fender (1) in place.
4. Remove taillamp and rubber seal.
5. Drill Ø 6.7 mm rivet holes in rear fender (1) and lower (areas F and G).
6. Remove rear fender (1).
7. Deburr rivet holes on rear fender (1) on both sides.
8. Coat insides of riveted joints with zinc dust paint.
Fig 2: Applying 2-Component Adhesive To Outer C-Pillar
Courtesy of MERCEDES-BENZ USA
9. Install rubber window spacers from glazing repair kit as spacers on outer rear wheel well at uniform intervals.
10. Apply sealant to outer rear wheel well and foam parts.
11. Apply 2-component adhesive to outer C-pillar (area D).

    Only when replacing lock striker bracket.

    Observe pretreatment of bonding 2 surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

Fig 3: Rear Fender Countersunk Rivet Areas
Courtesy of MERCEDES-BENZ USA
12. Install rear fender (1), fit and fix in place.
13. Rivet rear fender (1) with Ø 6.4 X 14 countersunk rivet (areas F₁ and G₁ ).
14. Rear fender (1) (areas D, E and H).
15. Rear fender (1) _{SG ««««} (areas A, B and C).

    Inert gas weld in intervals and allow to cool down in between. Otherwise heat distortion can occur.

16. Rear fender (1) _{SG ⓧ} (areas D₁ and K₁ ).

Shown on model 212.2

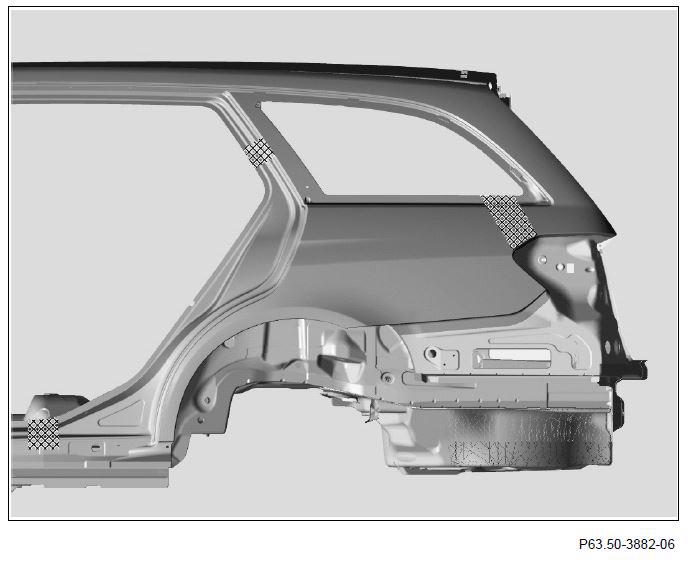

Fig 4: Rear Fender Soldering And Smoothing Cross-Hatched Areas
Courtesy of MERCEDES-BENZ USA
17. Grind inert gas welds down flat.
18. Clean weld joints.
19. Fill surface on rear fender in cross-hatched areas with solder and smooth.
20. Remove grinding and drilling chips with wet/dry vacuum cleaner.
