Install outer rear wheel well - AR63.10-P-0670-06EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

The following steps are shown on model 212.0.

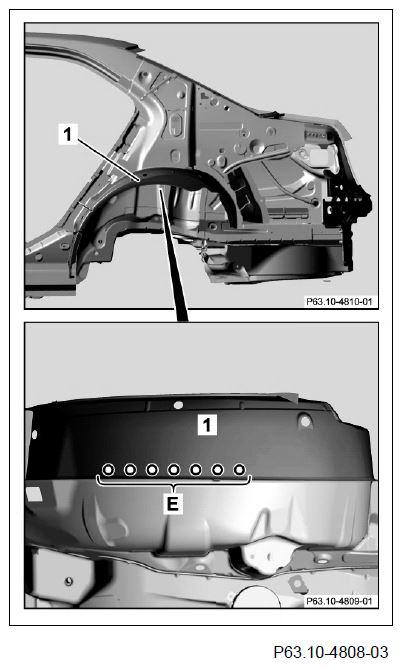

Fig 1: Outer Rear Wheel Well Rivet Hole Areas

Courtesy of MERCEDES-BENZ USA

Install outer rear wheel well (1), rear fender, taillamps and rubber seal and fit.
Check and adjust gaps.
Fix outer rear wheel well (1) and rear fender in place.
Remove taillamps and rubber seal.
Drill 6.7 mm Ø rivet holes in outer rear wheel well (1) (area E).
Remove rear fender and outer rear wheel well (1).
Deburr rivet holes on outer rear wheel well (1) on both sides.
Coat insides of riveted joints with zinc dust paint.

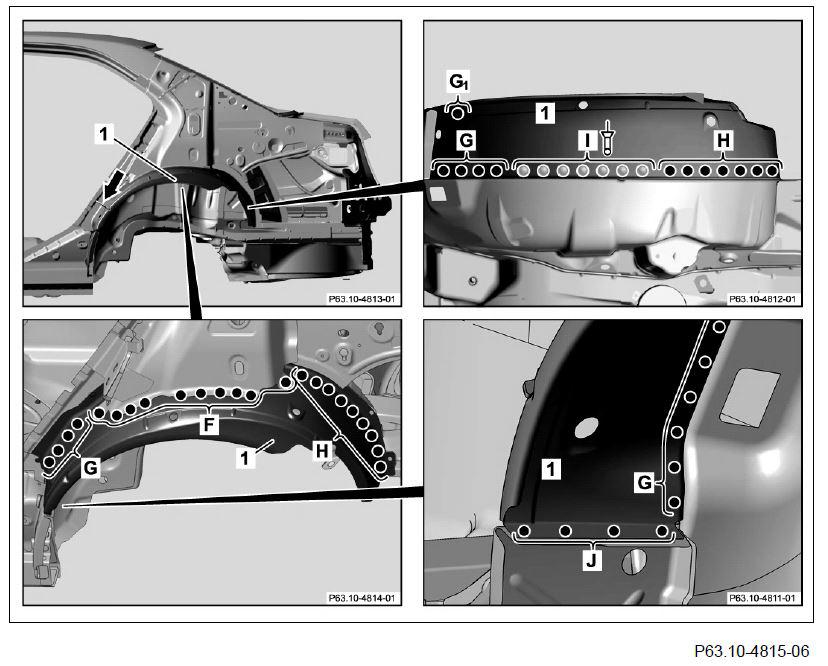

Fig 2: Outer Rear Wheel Well Polygrip Flat/Round Head Rivet Areas

Courtesy of MERCEDES-BENZ USA

Install outer rear wheel well (1), fit and fix in place.
Rivet outer rear wheel well (1) with Ø 6.4 X 14 Polygrip flat/round head rivet (area I).
Outer rear wheel well (1) (areas F, G, G₁ , H and J).
Always replace damaged foam parts which can no longer be used. New foam parts are available only from the responsible Daimler departments.
Clean weld joints.
Remove drilling chips.
