Install and weld in inner C-pillar side wall - AR63.10-P-0700-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /1

Fig 1: Identifying Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA

Set up side portal frame.
Observe setup plans.
Install inner C-pillar (2), reinforcement (3) and rear fender, fit and fix in place with straightening bracket.
Remove rear fender.
Center punch rivet holes on inner C-pillar (2) (area M).
Drill Ø 6.7 mm rivet holes in inner C-pillar (2) (area M).
Remove straightening bracket, inner C-pillar (2) and reinforcement (3).
Deburr rivet holes on inner C-pillar (2) on both sides.

Fig 2: Inner C-Pillar Rivet Hole Areas
Courtesy of MERCEDES-BENZ USA
Apply 2-component adhesive on body in crosshatched area.
Observe pretreatment of bonding surfaces.

Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

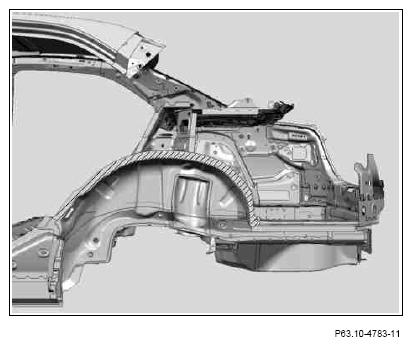

Fig 3: Applying 2-Component Adhesive On Body In Crosshatched Areas
Courtesy of MERCEDES-BENZ USA

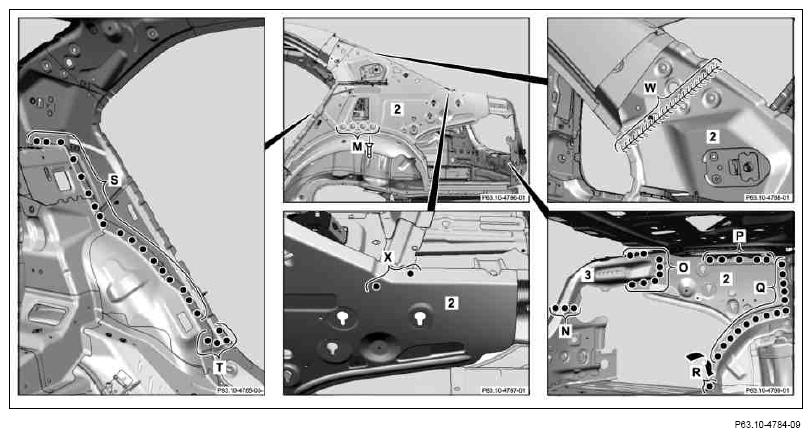

Fig 4: Inner C-Pillar Spot Weld Areas
Courtesy of MERCEDES-BENZ USA
Install inner C-pillar (2), fit and fix in place.
Rivet inner C-pillar (2) with Ø 6.5 X 12.5 steel/steel blind rivets (area M).
Inner C-pillar (2) (areas P, Q, R, S, T and X).
Install reinforcement (3), fit and fix in place.
Reinforcement (3) (areas N and O).
Inner C-pillar (2) (area W).
Weld inert gas welds in intervals, allow to cool down in between to minimize heat distortion (area W).

Grind inert gas welds on spot weld flanges down flat (area W).
Bend open sheet metal lug on outer rear wheel well (arrow).
Clean weld joints.

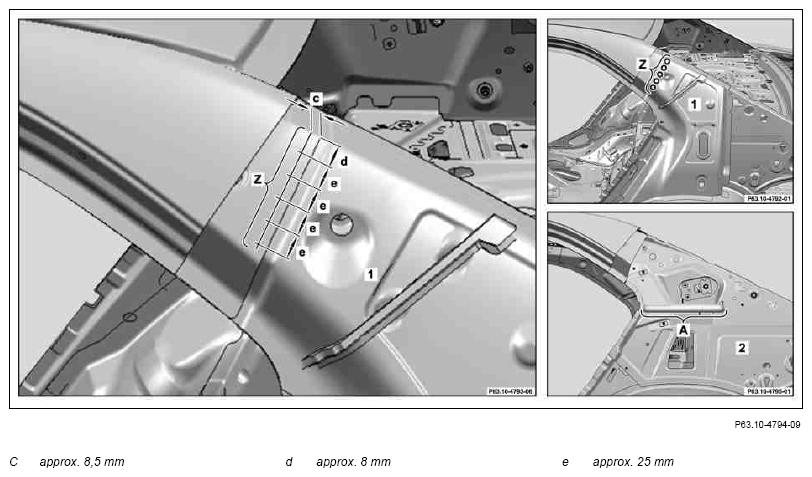

Fig 5: Outer C-Pillar Rivet Hole Area
Courtesy of MERCEDES-BENZ USA

Dimensions:
Install outer C-pillar (1), fit and fix in place.
Scribe rivet holes on outer C-pillar (1) (area Z).
Center punch rivet holes on outer C-pillar (1) (area Z).
Remove foam parts from old part and install on vehicle (area A).
For this purpose transfer position of foam parts to vehicle and apply sealant in this area. Fix removed foam parts in place, apply sealant on both sides all the way around and spread with brush or spatula.
Drill Ø 6, 7 mm rivet holes on outer C-pillar (1) with BTR Usibor drill bit (area Z).
Drill bits and milling cutters for high-strength steels (USIBOR)
Remove outer C-pillar (1)
Deburr rivet holes on outer C-pillar (1) on both sides.
Coat insides of riveted joints with zinc dust paint.
Always replace damaged foam parts which can no longer be used. New foam parts are available only from the responsible Daimler departments.
Apply sealant to foam parts (area A).
Install outer C-pillar (1), fit and fix in place.
Rivet outer C-pillar (1) with Ø 6.5 X 12.5 steel/steel blind rivets (area Z).
Outer C-pillar (1) (areas U₁ , U₂ , V and Y₁ ).
Outer C-pillar (1) (area Y).
Grind inert gas plug welds on spot weld flanges down flat (area Y).
Clean weld joints.
Remove shavings and drill chips.

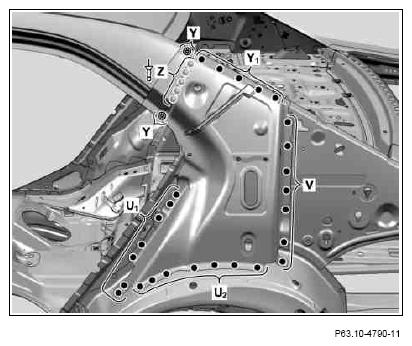

Fig 6: Outer C-Pillar Spot Weld Areas
Courtesy of MERCEDES-BENZ USA
