Cut off rear wheel well section - AR63.10-P-0662-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 166, 207.3/4, 212, 218

Shown on model 204.0

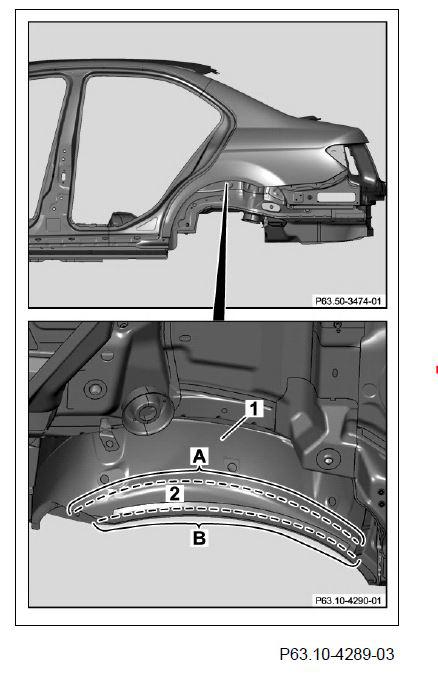

Fig 1: Outer Rear Wheel Well Separation Point

Courtesy of MERCEDES-BENZ USA

Scribe separation point on outer rear wheel well (1) along bead (area A).
Cut outer rear wheel well (1) at separation point (area A).
Do not damage rear fender below (area A).
Cut outer rear wheel well section (2) at separation point (area B).
Outer rear wheel well section (2) is glued to rear fender in area B.
Remove outer rear wheel well section (2).
Remove remaining adhesive in area B.
A maximum of 2 mm of adhesive residue may be left Pull off loose adhesive material (remaining pieces which are not completely cut off).
Repair bare parts with touchup applicator.
Remove shavings and drill chips.
