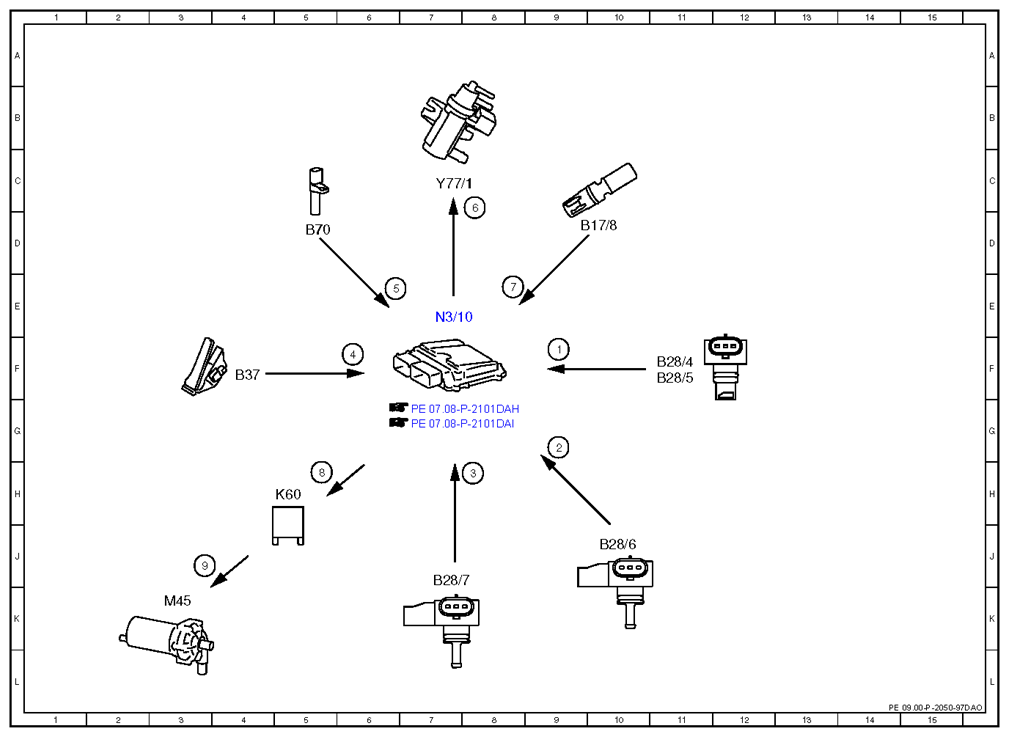

Electrical function schematic for charging - PE09.00-P-2050-97DAO
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 212 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pressure sensor downstream of air filter, signal | 9F |
| 2 | Boost pressure, signal | 9G |
| 3 | Intake manifold pressure, signal | 8H |
| 4 | Accelerator pedal sensor, signal | 6F |
| 5 | Engine speed, signal | 6E |
| 6 | Boost pressure control pressure transducer, actuation | 8D |
| 7 | Charge air temperature sensor, signal | 8E |
| 8 | Circulation pump relay, actuation | 5H |
| 9 | Coolant circulation pump, actuation | 3J |
| B17/8 | Charge air temperature sensor | 10D |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 11F |
| B28/5 | Pressure sensor downstream of air filter | 11F |
| B28/6 | Pressure sensor upstream of throttle valve | 10J |
| B28/7 | Pressure sensor downstream of throttle valve | 7J |
| B37 | Accelerator pedal sensor | 4F |
| B70 | Crankshaft Hall sensor | 5D |
| K60 | Coolant circulation pump relay | 5H |
| M45 | Coolant circulation pump | 3K |
| N3/10 | ME-SFI [ME] control unit | 7E |
| Y77/1 | Boost pressure positioner | 7C |
