Remove/install boost pressure sensor - AR09.41-P-2006OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 222

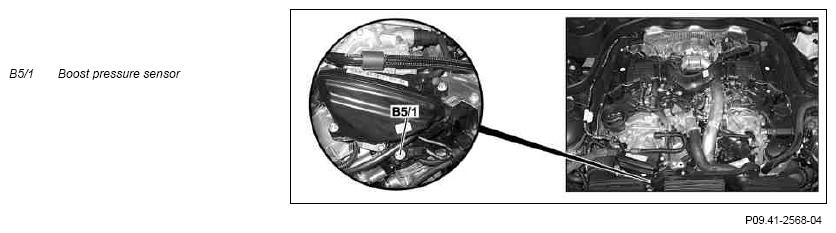

Shown on ENGINE 642 in MODEL 212.020
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove engine cover | ||
| 2 | Remove cover for belt drive | ENGINE 642 in MODEL 207, 212, 218 | |
| 3 | Remove right engine air intake duct upstream of air filter housing | ||
| 4 | Release and detach electrical connection from boost pressure sensor (B5/1) | ||
| 5 | Remove boost pressure sensor (B5/1) | ||
| 6 | Install in the reverse order | ||
| 7 | Connect STAR DIAGNOSIS, read out fault memory and clear if necessary | When replacing the boost pressure sensor (B5/1) | |
| ENGINE 642 in MODEL 222 | AD00.00-P-2000-04B | ||
| ENGINE 642 in MODEL 207, 212, 218 | AD00.00-P-2000-04A |
