Bolt plan for charge air manifold - AR09.41-P-1310-01SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.41-P-1009-01J | Screw/bolt, charge air distribution line to cylinder head | Nm | 18 |

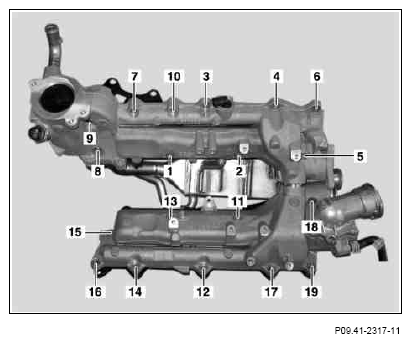

- Firmly install charge air manifold according to bolt plan and tightening torque
.
- Tighten screw/bolt (1) and screw/bolt (11) again using a tightening torque
