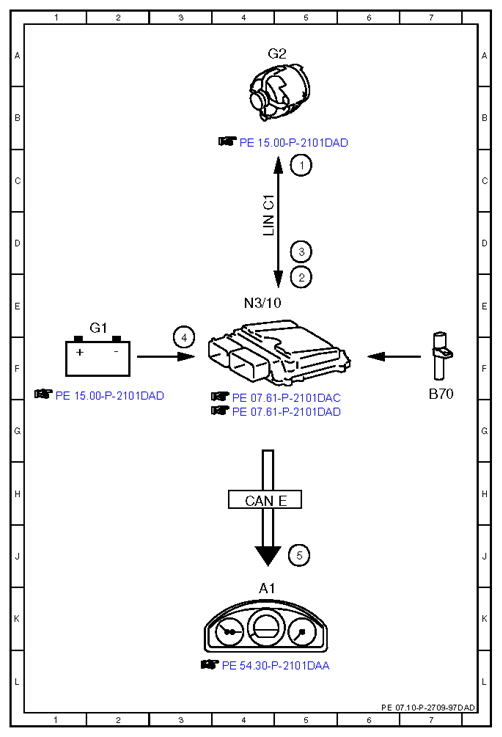

Electrical function schematic, alternator interface - PE07.10-P-2709-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, request | 5C |
| 2 | Alternator, status | 5E |
| 3 | Circuit 61, status | 5D |
| 4 | Circuit 30, status | 3F |
| 5 | Instrument cluster, message | 5J |
| A1 | Instrument cluster | 4K |
| B70 | Crankshaft Hall sensor | 7F |
| CAN E | Chassis CAN | 4H |
| G1 | On-board electrical system battery | 2E |
| G2 | Alternator | 4A |
| LIN C1 | Drive train LIN | 4D |
| N3/10 | ME-SFI [ME] control unit | 4E |
