Electrical function schematic for thermal management - PE07.10-P-2712-97DAR

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 as of 3/1/13 in MODEL 212 (except 212.098/298)

Code: Designation: Position:
1 Vehicle speed, signal 13G
10 Intake air temperature sensor, signal 11H
11 Radiator shutters actuator, actuation 12J
12 Coolant temperature sensor, signal 10H
13 Quantity control valve, actuation 9J
14 Differential pressure sensor (DPF), signal 8H
15 Temperature sensor upstream of diesel particulate filter, signal 7H
16 Engine speed, signal 6H
17 Coolant thermostat heating element, actuation 3J
18 Charge air temperature sensor, signal 6G
19 Fuel temperature sensor, signal 5F
2 Instrument cluster, message 18D
2 Instrument cluster, message 14C
20 Fuel injectors, actuation 3E
21 Combustion engine circuit 87 relay, actuation 13B
22 Coolant pump switchover valve, actuation 3D
23 Oil spray nozzles shutoff valve, actuation 4C
24 Pressure regulator valve, actuation 6C
25 Accelerator pedal sensor, signal 8D
26 Temperature sensor upstream of turbocharger, signal 10D
27 Oil temperature sensor, signal 10D
28 Circuit 87, status 11D
3 Fan motor, specified rpm request 10C
4 Air conditioning, status 12D
4 Air conditioning, status 16A
5 Outside temperature, signal 12D
6 Fan motor, status 9D
7 Gear range, status 13F
8 Boost pressure sensor, signal 12H
8 Boost pressure sensor, signal 9H
9 Hot film mass air flow sensor, signal 11H
A1 Instrument cluster 19D
A1p13 Multifunction display 19C
B1 Oil temperature sensor 12B
B11/4 Coolant temperature sensor 11K
B17/8 Charge air temperature sensor 2H
B19/11 Temperature sensor upstream of turbocharger 10A
B19/9 Temperature sensor upstream of diesel particulate filter 6L
B2/5 Hot film mass air flow sensor 13H
B2/5b1 Intake air temperature sensor 13H
B28/8 Differential pressure sensor (DPF) 7L
B37 Accelerator pedal sensor 7A
B5/1 Boost pressure sensor 10K
B5/4 Low-pressure turbocharger boost pressure sensor 14H
B50 Fuel temperature sensor 3F
B70 Crankshaft Hall sensor 5J
CAN B Interior CAN 18B
CAN C Drive train CAN 14F
CAN C Drive train CAN 20F
CAN E1 Chassis CAN 1 14G
CAN E1 Chassis CAN 1 14D
CAN E2 Chassis CAN 2 16D
Code 421 9-speed automatic transmission 21H
Code 427 7-speed automatic transmission 18H
Code 474 Diesel particulate filter 6K
Code 494 USA version 8G
M4/7 Combustion engine and air conditioning with integrated control fan motor 9A
N10/1 Front SAM control unit with fuse and relay module 15A
N10/1kN Engine circuit 87 relay 13C
N22/7 Automatic air conditioning control and operating unit 21A
N3/9 CDI control unit 9E
N30/4 Electronic Stability Program control unit 17H
N30/7 Premium Electronic Stability Program control unit 17H
R48 Coolant thermostat heating element 2K
U1000 Not valid for engine model designation 651.925 14H
U2 Valid for all except USA 2K
U909 Valid for DISTRONIC PLUS 15H
U999 Not valid with DISTRONIC PLUS 15H
Y131 Oil spray nozzle shutoff valve 4B
Y133 Coolant pump switchover valve 3C
Y3/8n4 Fully integrated transmission control unit 22J
Y3/8n4 Fully integrated transmission control unit 19J
Y74 Pressure regulator valve 5B
Y76/1 Cylinder 1 fuel injector 2E
Y76/2 Cylinder 2 fuel injector 2E
Y76/3 Cylinder 3 fuel injector 2F
Y76/4 Cylinder 4 fuel injector 2F
Y84 Radiator shutters actuator 12K
Y94 Quantity control valve 8K

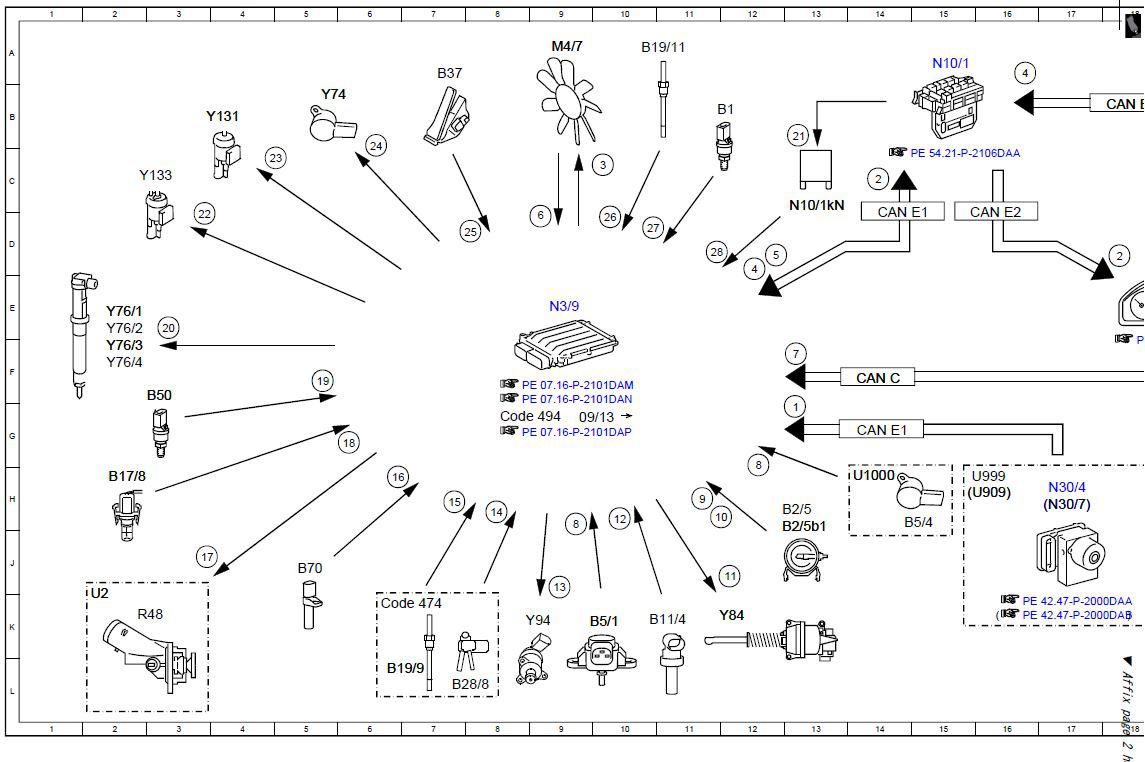

Fig 1: Thermal Management Electrical Function Schematic (1 Of 2)
G00565309Courtesy of MERCEDES-BENZ USA

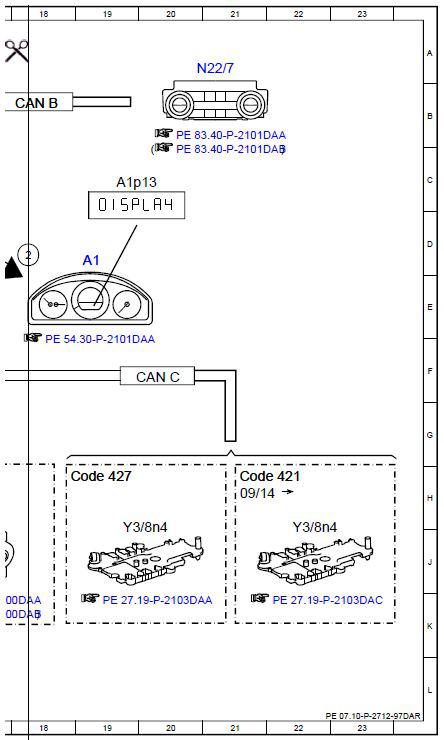

Fig 2: Thermal Management Electrical Function Schematic (2 Of 2)
G00565310Courtesy of MERCEDES-BENZ USA
