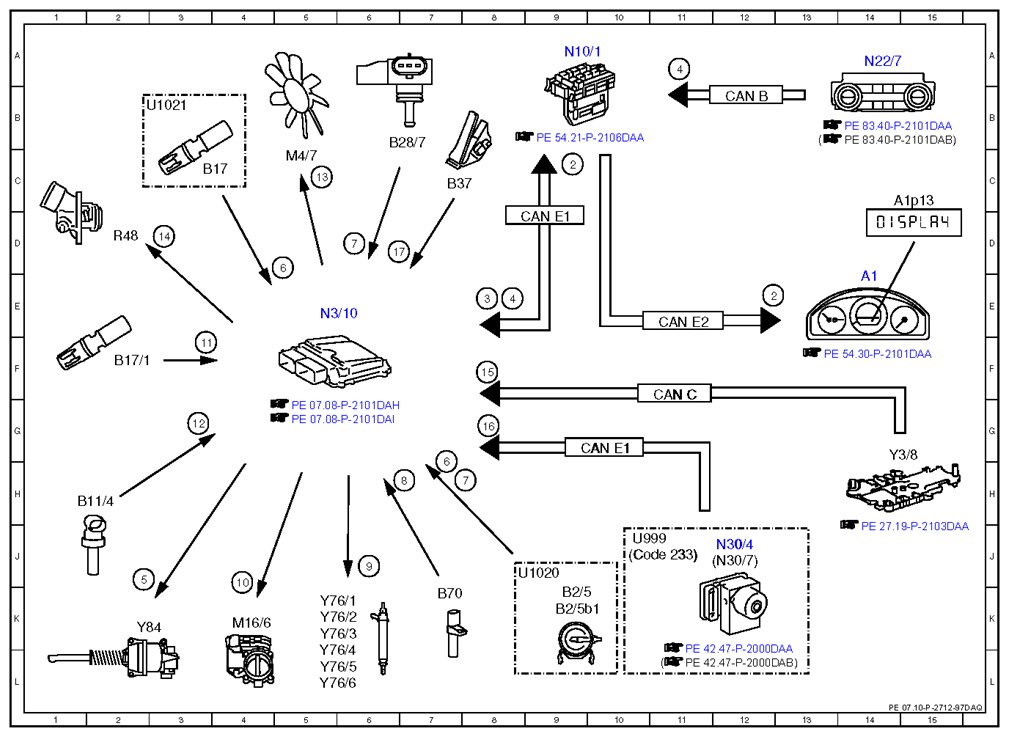

Electrical function schematic for thermal management - PE07.10-P-2712-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 10 | Throttle valve actuator, actuation | 4J |
| 11 | Intake manifold intake air temperature sensor, signal | 3F |
| 12 | Coolant temperature sensor, signal | 3G |
| 13 | Fan motor, specified rpm request | 5C |
| 14 | Coolant thermostat heating element, actuation | 3D |
| 15 | Transmission control, signal | 8F |
| 16 | Wheel speed, signal | 8G |
| 17 | Accelerator pedal sensor, signal | 6D |
| 2 | Instrument cluster, message | 9C |
| 2 | Instrument cluster, message | 12E |
| 3 | Air conditioning, status | 8E |
| 4 | Outside temperature, signal | 8E |
| 4 | Outside temperature, signal | 11A |
| 5 | Radiator shutters actuator, actuation | 2J |
| 6 | Intake air temperature sensor, signal | 7H |
| 6 | Intake air temperature sensor, signal | 5D |
| 7 | Engine load, signal | 8H |
| 7 | Engine load, signal | 6D |
| 8 | Engine speed, signal | 7H |
| 9 | Fuel injectors, actuation | 6J |
| A1 | Instrument cluster | 14E |
| A1p13 | Multifunction display | 15C |
| B11/4 | Coolant temperature sensor | 2H |
| B17 | Intake air temperature sensor | 3C |
| B17/1 | Intake manifold intake air temperature sensor | 2F |
| B2/5 | Hot film mass air flow sensor | 9K |
| B2/5b1 | Intake air temperature sensor | 9K |
| B28/7 | Pressure sensor downstream of throttle valve | 6B |
| B37 | Accelerator pedal sensor | 7C |
| B70 | Crankshaft Hall sensor | 7K |
| CAN B | Interior CAN | 12B |
| CAN C | Drive train CAN | 11F |
| CAN E1 | Chassis CAN 1 | 9D |
| CAN E1 | Chassis CAN 1 | 10G |
| CAN E2 | Chassis CAN 2 | 11E |
| Code 233 | DISTRONIC PLUS | 10J |
| M16/6 | Throttle valve actuator | 4K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 5C |
| N10/1 | Front SAM control unit with fuse and relay module | 9A |
| N22/7 | Automatic air conditioning control and operating unit | 14A |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 12J |
| N30/7 | Premium Electronic Stability Program control unit | 12J |
| R48 | Coolant thermostat heating element | 2D |
| U1020 | Valid for gasoline engine with stratified operation | 8J |
| U1021 | Not valid for gasoline engine with stratified operation | 2B |
| U999 | Not valid with DISTRONIC PLUS | 10J |
| Y3/8 | Fully integrated transmission control unit | 14G |
| Y76/1 | Cylinder 1 fuel injector | 5K |
| Y76/2 | Cylinder 2 fuel injector | 5K |
| Y76/3 | Cylinder 3 fuel injector | 5K |
| Y76/4 | Cylinder 4 fuel injector | 5L |
| Y76/5 | Cylinder 5 fuel injector | 5L |
| Y76/6 | Cylinder 6 fuel injector | 5L |
| Y84 | Radiator shutters actuator | 2K |
