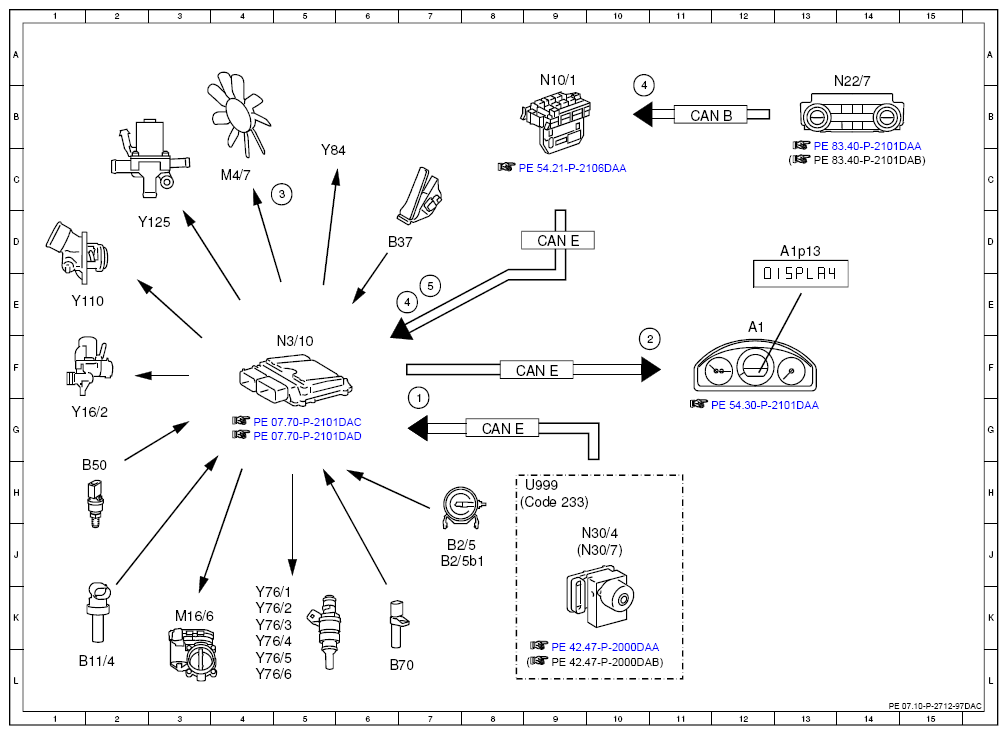

Electrical function schematic for thermal management - PE07.10-P-2712-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 7G |
| 2 | Instrument cluster, message | 10F |
| 3 | Fan motor, specified rpm request | 5C |
| 4 | Air conditioning, status | 7E |
| 4 | Air conditioning, status | 10B |
| 5 | Outside temperature, signal | 7E |
| A1 | Instrument cluster | 12E |
| A1p13 | Multifunction display | 13D |
| B11/4 | Coolant temperature sensor | 2L |
| B2/5 | Hot film mass air flow sensor | 7J |
| B2/5b1 | Intake air temperature sensor | 7J |
| B37 | Accelerator pedal sensor | 6D |
| B50 | Fuel temperature sensor | 1H |
| B70 | Crankshaft Hall sensor | 6L |
| CAN B | Interior CAN | 12B |
| CAN E | Chassis CAN | 9D |
| CAN E | Chassis CAN | 9F |
| CAN E | Chassis CAN | 8G |
| Code 233 | DISTRONIC PLUS | 9H |
| M16/6 | Throttle valve actuator | 3K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 4C |
| N10/1 | Front SAM control unit with fuse and relay module | 9A |
| N22/7 | Automatic air conditioning control and operating unit | 14B |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N30/4 | Electronic Stability Program control unit | 10J |
| N30/7 | Premium Electronic Stability Program control unit | 10J |
| U999 | Not valid with DISTRONIC PLUS | 9H |
| Y110 | Coolant thermostat | 1E |
| Y125 | Low-temperature circuit shutoff valve | 2D |
| Y16/2 | Heating system shutoff valve | 1G |
| Y76/1 | Cylinder 1 fuel injector | 4K |
| Y76/2 | Cylinder 2 fuel injector | 4K |
| Y76/3 | Cylinder 3 fuel injector | 4K |
| Y76/4 | Cylinder 4 fuel injector | 4K |
| Y76/5 | Cylinder 5 fuel injector | 4L |
| Y76/6 | Cylinder 6 fuel injector | 4L |
| Y84 | Radiator shutters actuator | 5C |
