Electrical function schematic for smooth running control - PE07.10-P-2711-97DAM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.8 in MODEL 212 as of model year 2014

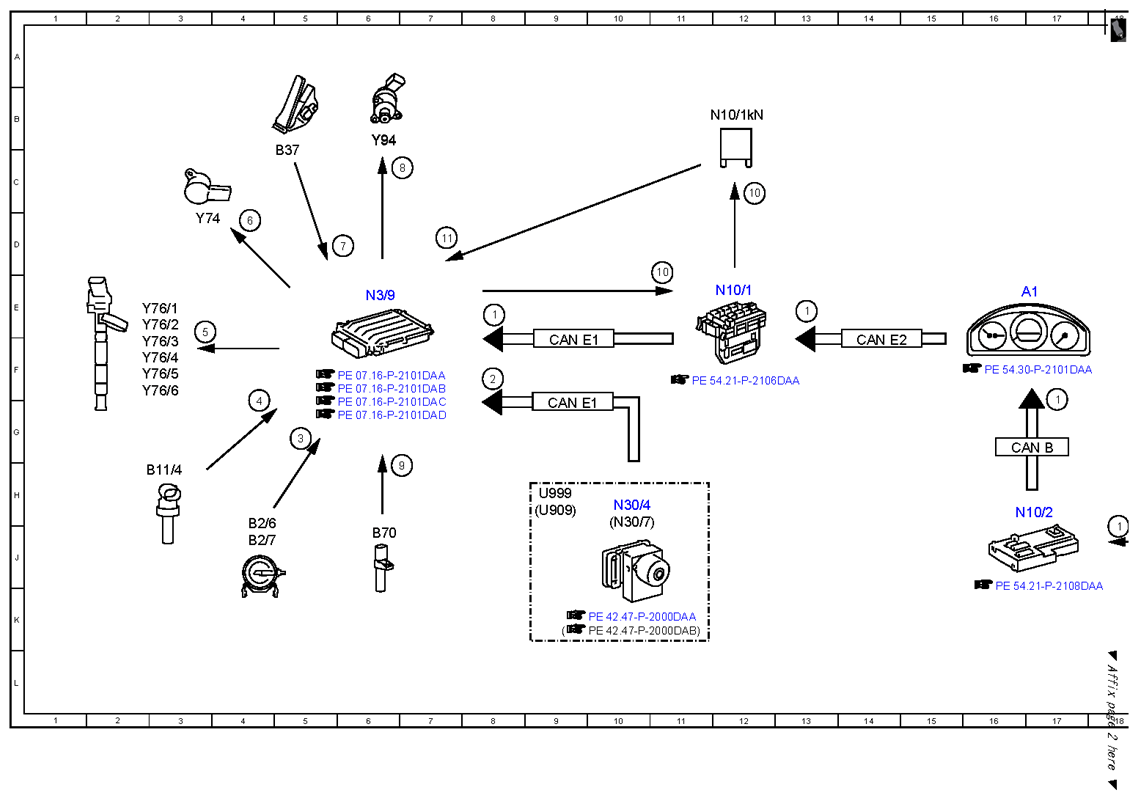

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel level, signal | 8E |
| 1 | Fuel level, signal | 13E |
| 1 | Fuel level, signal | 18J |
| 1 | Fuel level, signal | 17G |
| 10 | Combustion engine circuit 87 relay, actuation | 11E |
| 10 | Combustion engine circuit 87 relay, actuation | 12C |
| 11 | Circuit 87, status | 7D |
| 2 | Wheel speed, signal | 8F |
| 3 | Engine load, signal | 5G |
| 4 | Coolant temperature sensor, signal | 4G |
| 5 | Fuel injectors, actuation | 3E |
| 6 | Pressure regulator valve, actuation | 4D |
| 7 | Accelerator pedal sensor, signal | 6D |
| 8 | Quantity control valve, actuation | 7C |
| 9 | Engine speed, signal | 7H |
| A1 | Instrument cluster | 16E |
| B11/4 | Coolant temperature sensor | 3H |
| B2/6 | Left hot film MAF sensor | 4J |
| B2/7 | Right hot film MAF sensor | 4J |
| B37 | Accelerator pedal sensor | 5C |
| B4/1 | Left fuel level indicator sensor | 20J |
| B4/2 | Right fuel level indicator sensor | 20J |
| B70 | Crankshaft Hall sensor | 6J |
| CAN B | Interior CAN | 16G |
| CAN E1 | Chassis CAN 1 | 9F |
| CAN E1 | Chassis CAN 1 | 9G |
| CAN E2 | Chassis CAN 2 | 14F |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N10/1kN | Engine circuit 87 relay | 12B |
| N10/2 | Rear SAM control unit with fuse and relay module | 17H |
| N3/9 | CDI control unit | 6E |
| N30/4 | Electronic Stability Program control unit | 10H |
| N30/7 | Premium Electronic Stability Program control unit | 10J |
| U909 | Valid for DISTRONIC PLUS | 9H |
| U999 | Not valid with DISTRONIC PLUS | 9H |
| Y74 | Pressure regulator valve | 3D |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
| Y94 | Quantity control valve | 6B |
