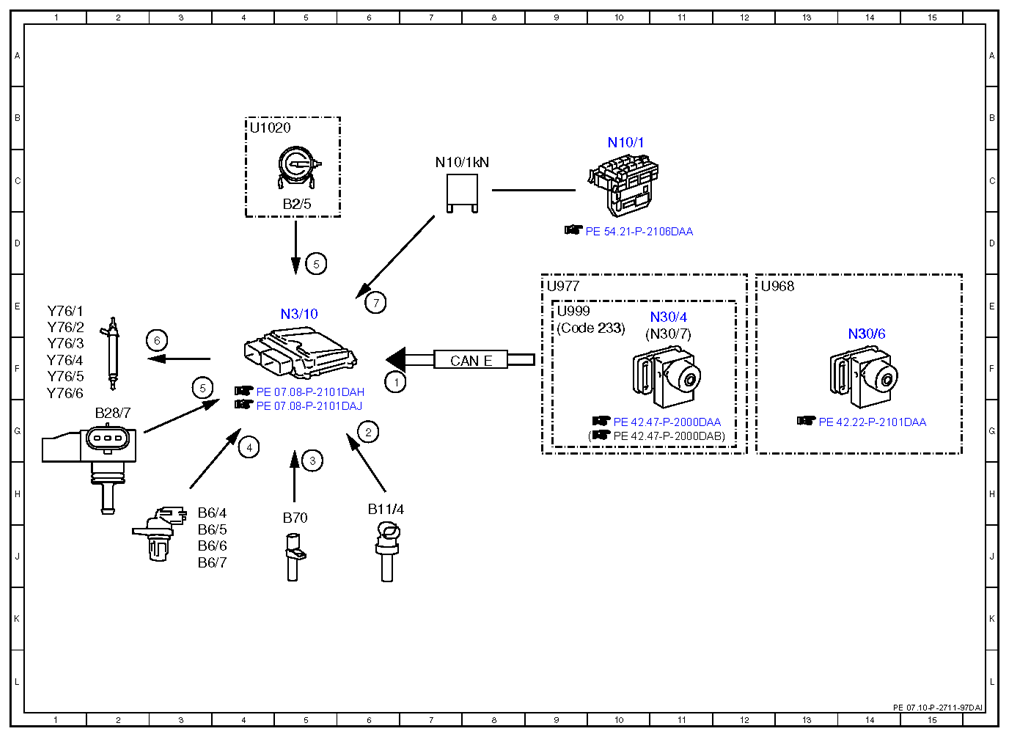

Electrical function schematic for smooth running control - PE07.10-P-2711-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 6F |
| 2 | Coolant temperature sensor, signal | 6G |
| 3 | Engine speed, signal | 5H |
| 4 | Camshaft Hall sensor, signal | 4G |
| 5 | Engine load, signal | 5D |
| 5 | Engine load, signal | 3F |
| 6 | Fuel injectors, actuation | 3F |
| 7 | Circuit 87, status | 6E |
| B11/4 | Coolant temperature sensor | 6H |
| B2/5 | Hot film mass air flow sensor | 5C |
| B28/7 | Pressure sensor downstream of throttle valve | 2G |
| B6/4 | Left intake camshaft Hall sensor | 3H |
| B6/5 | Right intake camshaft Hall sensor | 3J |
| B6/6 | Left exhaust camshaft Hall sensor | 3J |
| B6/7 | Right exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 5H |
| CAN E | Chassis CAN | 8F |
| Code 233 | DISTRONIC PLUS | 9E |
| N10/1 | Front SAM control unit with fuse and relay module | 10B |
| N10/1kN | Engine circuit 87 relay | 7C |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 11E |
| N30/6 | Regenerative braking system control unit | 14F |
| N30/7 | Premium Electronic Stability Program control unit | 11F |
| U1020 | Valid for gasoline engine with stratified operation | 4B |
| U968 | Valid for mild hybrid drive | 12E |
| U977 | Not valid for mild hybrid drive | 9E |
| U999 | Not valid with DISTRONIC PLUS | 9E |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1E |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1F |
