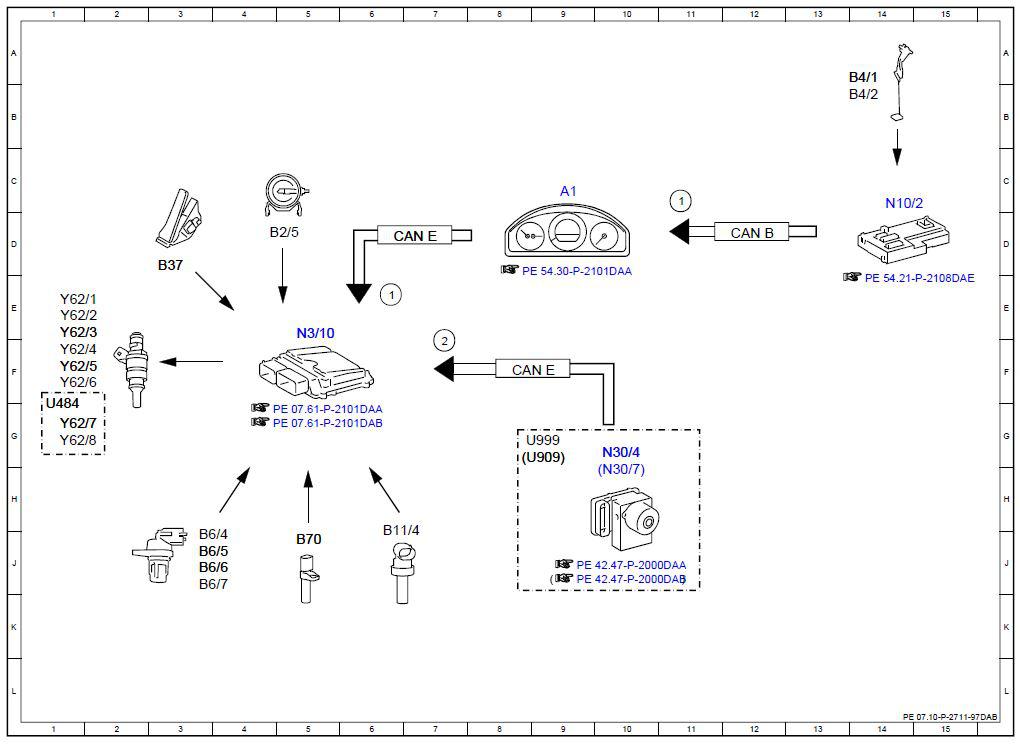

Electrical function schematic for smooth running control - PE07.10-P-2711-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except ENGINE 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel level, signal | 6E |
| 1 | Fuel level, signal | 11C |
| 2 | Wheel speed, signal | 7F |
| A1 | Instrument cluster | 9C |
| B11/4 | Coolant temperature sensor | 6J |
| B2/5 | Hot film mass air flow sensor | 5D |
| B37 | Accelerator pedal sensor | 3D |
| B4/1 | Left fuel level indicator sensor | 13A |
| B4/2 | Right fuel level indicator sensor | 13B |
| B6/4 | Left intake camshaft Hall sensor | 3J |
| B6/5 | Right intake camshaft Hall sensor | 3J |
| B6/6 | Left exhaust camshaft Hall sensor | 3J |
| B6/7 | Right exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 5J |
| CAN B | Interior CAN | 12D |
| CAN E | Chassis CAN | 8F |
| CAN E | Chassis CAN | 7D |
| N10/2 | Rear SAM control unit with fuse and relay module | 14C |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 10G |
| N30/7 | Premium Electronic Stability Program control unit | 10H |
| U484 | Valid for gasoline engine 273 | 1G |
| U909 | Valid for DISTRONIC PLUS | 8G |
| U999 | Not valid with DISTRONIC PLUS | 8G |
| Y62/1 | Cylinder 1 injection valve | 1E |
| Y62/2 | Cylinder 2 injection valve | 1E |
| Y62/3 | Cylinder 3 injection valve | 1E |
| Y62/4 | Cylinder 4 injection valve | 1F |
| Y62/5 | Cylinder 5 injection valve | 1F |
| Y62/6 | Cylinder 6 injection valve | 1F |
| Y62/7 | Cylinder 7 injection valve | 1G |
| Y62/8 | Cylinder 8 injection valve | 1G |
