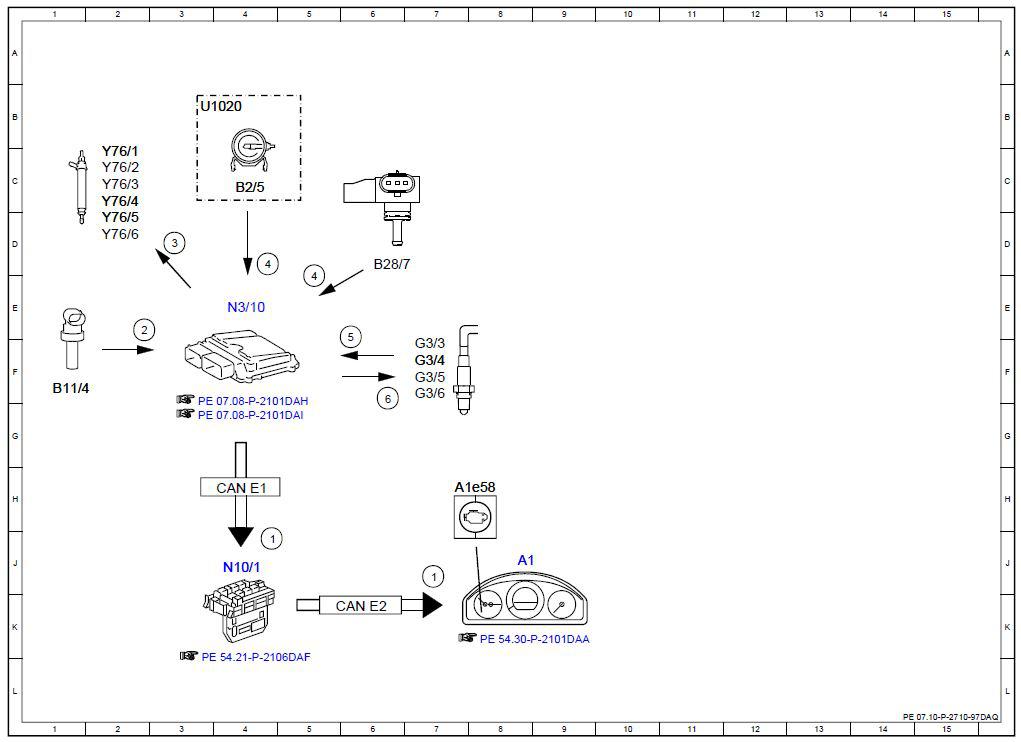

Electrical function schematic for lambda control - PE07.10-P-2710-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8/9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 4J |
| 1 | Engine diagnosis indicator lamp, actuation | 7J |
| 2 | Coolant temperature sensor, signal | 2E |
| 3 | Fuel injectors, actuation | 3D |
| 4 | Engine load, signal | 4D |
| 4 | Engine load, signal | 5E |
| 5 | Oxygen sensor, signal | 6F |
| 6 | Oxygen sensor heater, actuation | 6F |
| A1 | Instrument cluster | 8J |
| A1e58 | Engine diagnosis indicator lamp | 7H |
| B11/4 | Coolant temperature sensor | 1F |
| B2/5 | Hot film mass air flow sensor | 4C |
| B28/7 | Pressure sensor downstream of throttle valve | 6D |
| CAN E1 | Chassis CAN 1 | 4H |
| CAN E2 | Chassis CAN 2 | 6K |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7F |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7F |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 7F |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 7F |
| N10/1 | Front SAM control unit with fuse and relay module | 4J |
| N3/10 | ME-SFI [ME] control unit | 4E |
| U1020 | Valid for gasoline engine with stratified operation | 3B |
| Y76/1 | Cylinder 1 fuel injector | 2C |
| Y76/2 | Cylinder 2 fuel injector | 2C |
| Y76/3 | Cylinder 3 fuel injector | 2C |
| Y76/4 | Cylinder 4 fuel injector | 2C |
| Y76/5 | Cylinder 5 fuel injector | 2D |
| Y76/6 | Cylinder 6 fuel injector | 2D |
