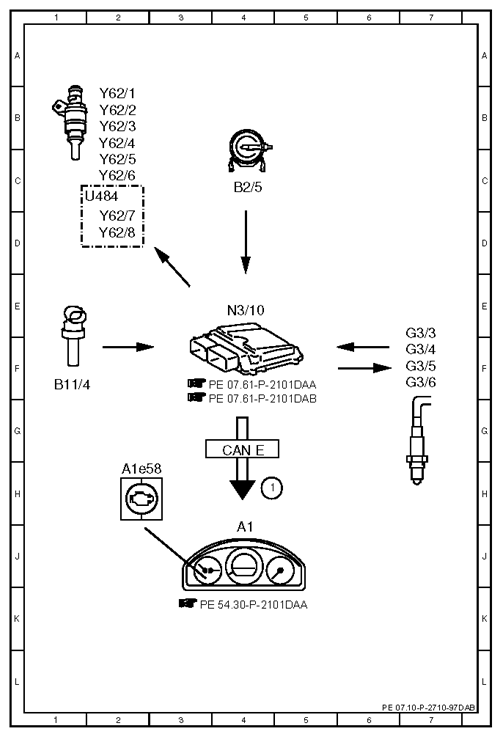

Electrical function schematic for lambda control - PE07.10-P-2710-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except engine 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 4H |
| A1 | Instrument cluster | 4J |
| A1e58 | Engine diagnosis indicator lamp | 2H |
| B11/4 | Coolant temperature sensor | 1F |
| B2/5 | Hot film mass air flow sensor | 4C |
| CAN E | Chassis CAN | 4G |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7F |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7F |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 7F |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 7F |
| N3/10 | ME-SFI [ME] control unit | 4E |
| U484 | Valid for gasoline engine 273 | 1C |
| Y62/1 | Cylinder 1 injection valve | 2B |
| Y62/2 | Cylinder 2 injection valve | 2B |
| Y62/3 | Cylinder 3 injection valve | 2B |
| Y62/4 | Cylinder 4 injection valve | 2B |
| Y62/5 | Cylinder 5 injection valve | 2C |
| Y62/6 | Cylinder 6 injection valve | 2C |
| Y62/7 | Cylinder 7 injection valve | 2D |
| Y62/8 | Cylinder 8 injection valve | 2D |
