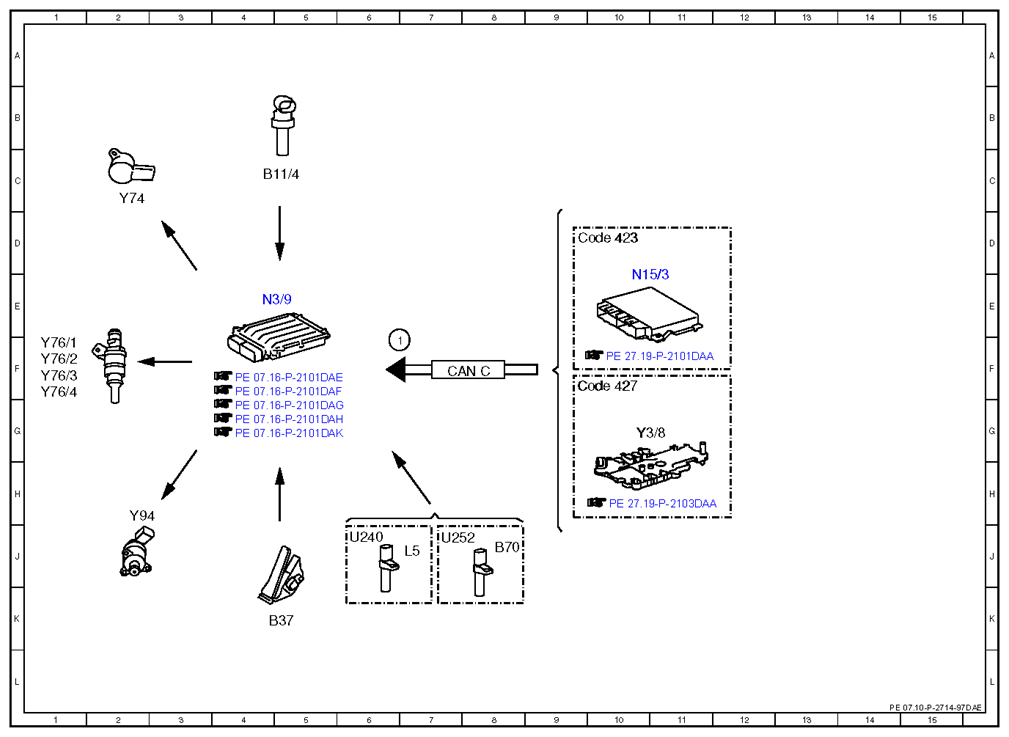

Electrical function schematic for deceleration fuel shutoff - PE07.10-P-2714-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651 in MODEL 212 / (except 212.098 /298)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 6F |
| B11/4 | Coolant temperature sensor | 4C |
| B37 | Accelerator pedal sensor | 4K |
| B70 | Crankshaft Hall sensor | 8J |
| CAN C | Drive train CAN | 7F |
| Code 423 | 5-speed automatic transmission | 9D |
| Code 427 | 7-speed automatic transmission | 9F |
| L5 | Crankshaft position sensor | 7J |
| N15/3 | Electronic transmission control unit | 10E |
| N3/9 | CDI control unit | 4E |
| U240 | Valid for all except ECO start/stop function | 6J |
| U252 | Valid for ECO start/stop function | 7J |
| Y3/8 | Fully integrated transmission control unit | 10G |
| Y74 | Pressure regulator valve | 2C |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y94 | Quantity control valve | 2H |
