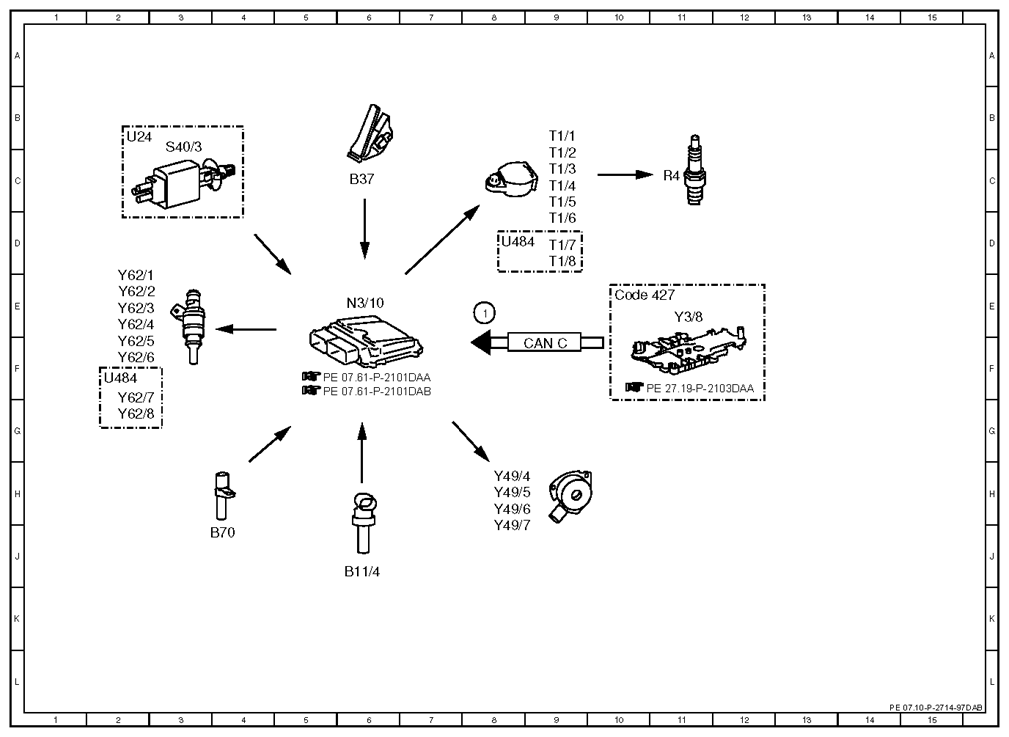

Electrical function schematic for deceleration fuel shutoff - PE07.10-P-2714-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except engine 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 8E |
| B11/4 | Coolant temperature sensor | 6J |
| B37 | Accelerator pedal sensor | 6C |
| B70 | Crankshaft Hall sensor | 3J |
| CAN C | Drive train CAN | 9E |
| Code 427 | 7-speed automatic transmission | 11E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 11C |
| S40/3 | Clutch pedal switch | 3C |
| T1/1 | Cylinder 1 ignition coil | 9B |
| T1/2 | Cylinder 2 ignition coil | 9C |
| T1/3 | Cylinder 3 ignition coil | 9C |
| T1/4 | Cylinder 4 ignition coil | 9C |
| T1/5 | Cylinder 5 ignition coil | 9C |
| T1/6 | Cylinder 6 ignition coil | 9D |
| T1/7 | Cylinder 7 ignition coil | 9D |
| T1/8 | Cylinder 8 ignition coil | 9D |
| U24 | Valid for manual transmission | 2B |
| U484 | Valid for gasoline engine 273 | 8D |
| U484 | Valid for gasoline engine 273 | 2F |
| Y3/8 | Fully integrated transmission control unit | 11E |
| Y49/4 | Left intake camshaft solenoid | 8H |
| Y49/5 | Right intake camshaft solenoid | 8H |
| Y49/6 | Left exhaust camshaft solenoid | 8H |
| Y49/7 | Right exhaust camshaft solenoid | 8J |
| Y62/1 | Cylinder 1 injection valve | 2E |
| Y62/2 | Cylinder 2 injection valve | 2E |
| Y62/3 | Cylinder 3 injection valve | 2E |
| Y62/4 | Cylinder 4 injection valve | 2E |
| Y62/5 | Cylinder 5 injection valve | 2F |
| Y62/6 | Cylinder 6 injection valve | 2F |
| Y62/7 | Cylinder 7 injection valve | 2G |
| Y62/8 | Cylinder 8 injection valve | 2G |
