Adaptive Brake (ABR) location of components - GF42.47-P-0001-02FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 (except 212.095/098/298) up to model year 2014

Shown on model 212.0 (except CODE 990 (AMG vehicles)) up to 31.8.09

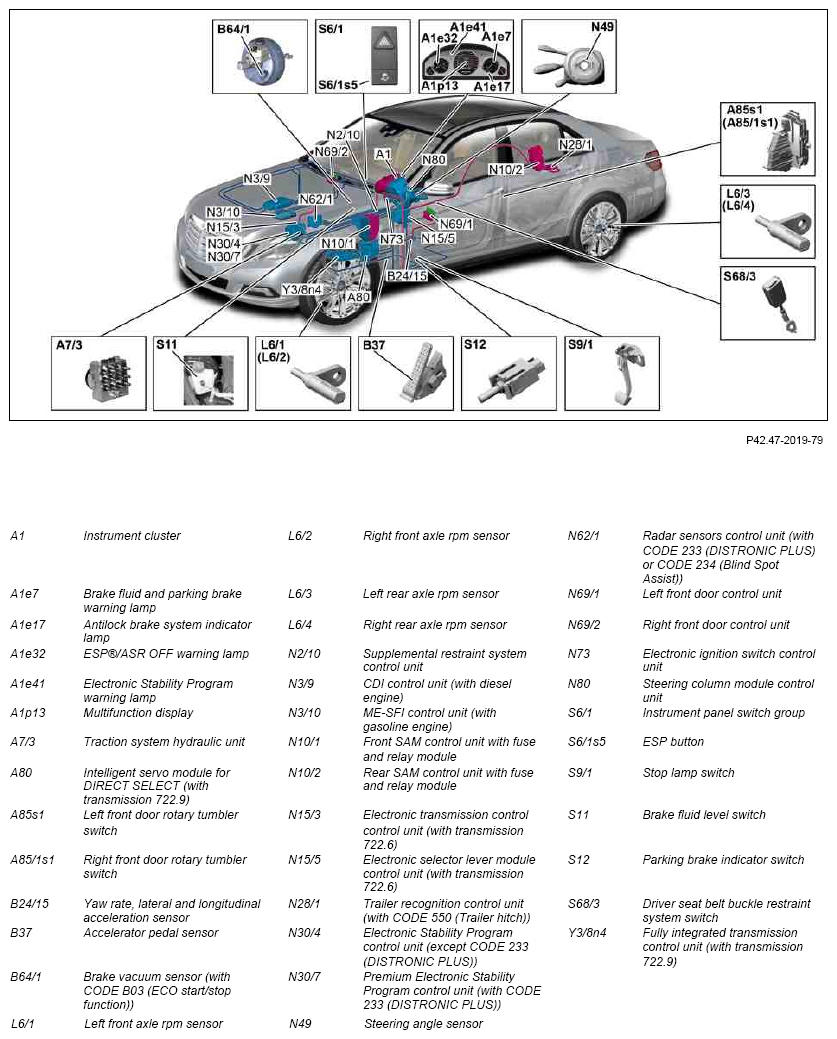

Fig 1: Adaptive Brake (ABR) Components Location (Except Code 990 (AMG Vehicles)) Up To 31.8.09

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 (except CODE 990 (AMG vehicles)) as of 1.9.09

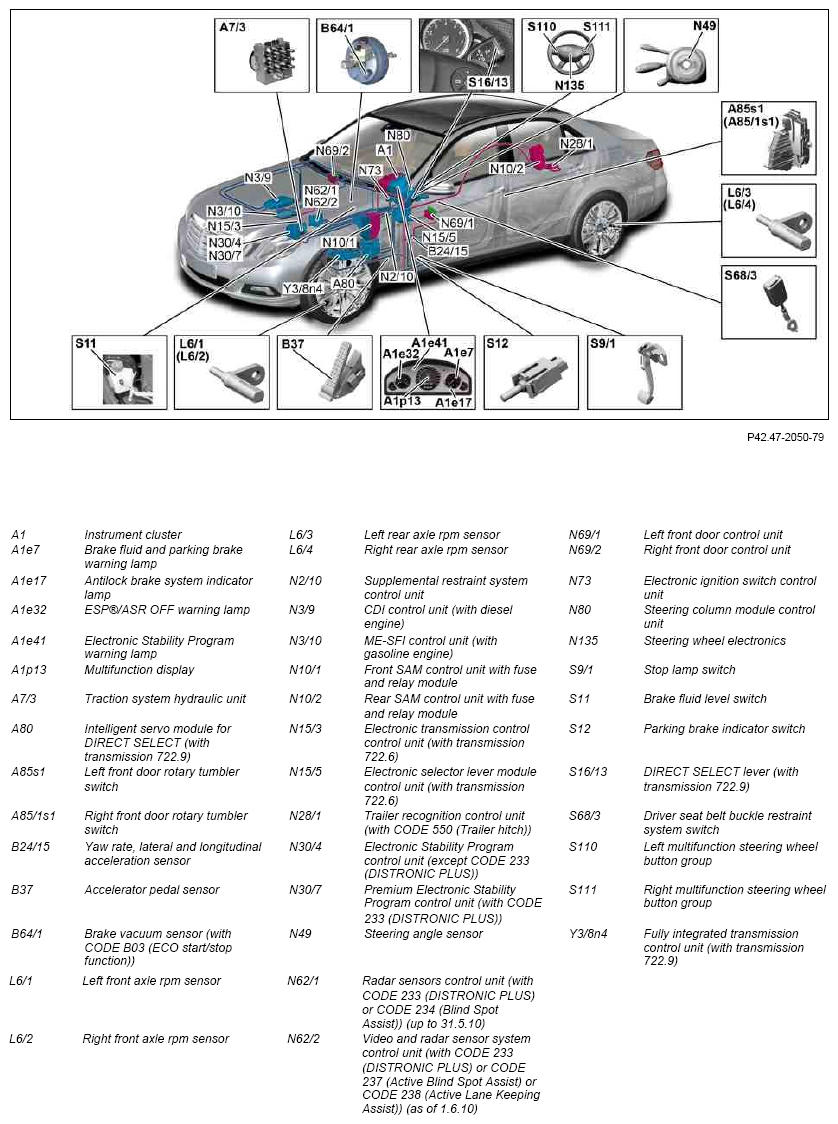

Fig 2: Adaptive Brake (ABR) Components Location (Except Code 990 (AMG Vehicles)) As Of 1.9.09

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 (with CODE 990 (AMG vehicles))

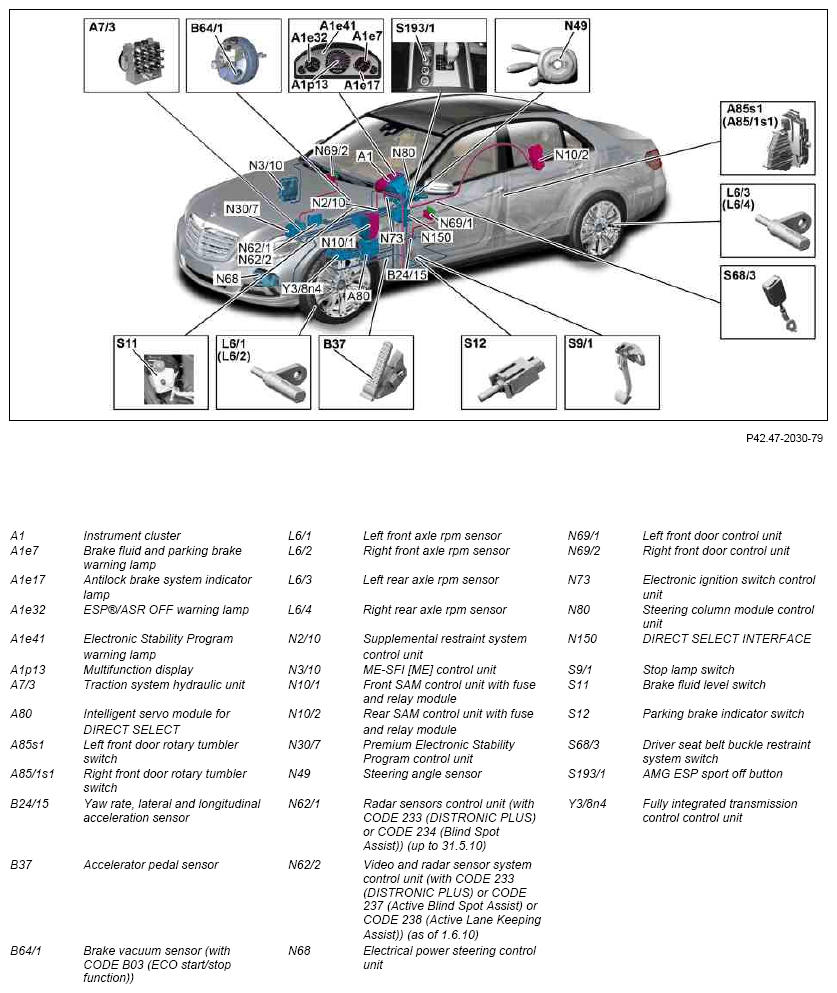

Fig 3: Adaptive Brake (ABR) Components Location (With Code 990 (AMG vehicles))

Courtesy of MERCEDES-BENZ USA
