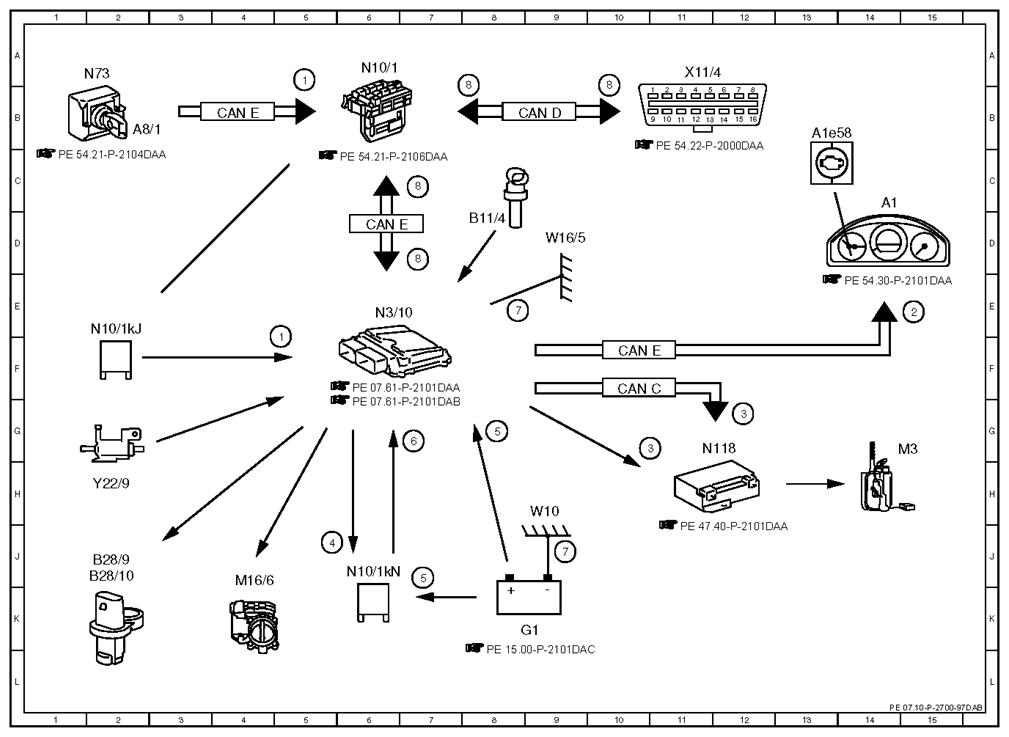

Electrical function schematic, ignition ON - PE07.10-P-2700-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except engine 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status ON | 5F |
| 1 | Circuit 15, status ON | 5A |
| 2 | Engine diagnosis indicator lamp, actuation | 15E |
| 3 | Fuel pump, request ON | 10G |
| 3 | Fuel pump, request ON | 12G |
| 4 | Combustion engine circuit 87 relay, actuation | 5J |
| 5 | Circuit 30, status | 7J |
| 5 | Circuit 30, status | 8G |
| 6 | Circuit 87, status | 7G |
| 7 | Circuit 31, status | 8E |
| 7 | Circuit 31, status | 9J |
| 8 | Correction programming, communication | 7D |
| 8 | Correction programming, communication | 7C |
| 8 | Correction programming, communication | 8B |
| 8 | Correction programming, communication | 10B |
| A1 | Instrument cluster | 14C |
| A1e58 | Engine diagnosis indicator lamp | 13B |
| A8/1 | Transmitter key | 2B |
| B11/4 | Coolant temperature sensor | 8D |
| B28/10 | Right intake manifold tumble flap position sensor | 2J |
| B28/9 | Left intake manifold tumble flap position sensor | 2J |
| CAN C | Drive train CAN | 10F |
| CAN D | Diagnostic CAN | 9B |
| CAN E | Chassis CAN | 10F |
| CAN E | Chassis CAN | 4B |
| CAN E | Chassis CAN | 6D |
| G1 | On-board electrical system battery | 9K |
| M16/6 | Throttle valve actuator | 4J |
| M3 | Fuel pump (FP) | 15G |
| N10/1 | Front SAM control unit with fuse and relay module | 6A |
| N10/1kJ | Circuit 15 relay | 2E |
| N10/1kN | Engine circuit 87 relay | 6J |
| N118 | Fuel pump control unit | 11G |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N73 | Electronic ignition switch control unit | 2A |
| W10 | Right front battery ground point | 9H |
| W16/5 | Left major assembly compartment electronics ground point | 9D |
| X11/4 | Diagnostic connector | 11A |
| Y22/9 | Intake manifold tumble flap switchover valve | 2H |
