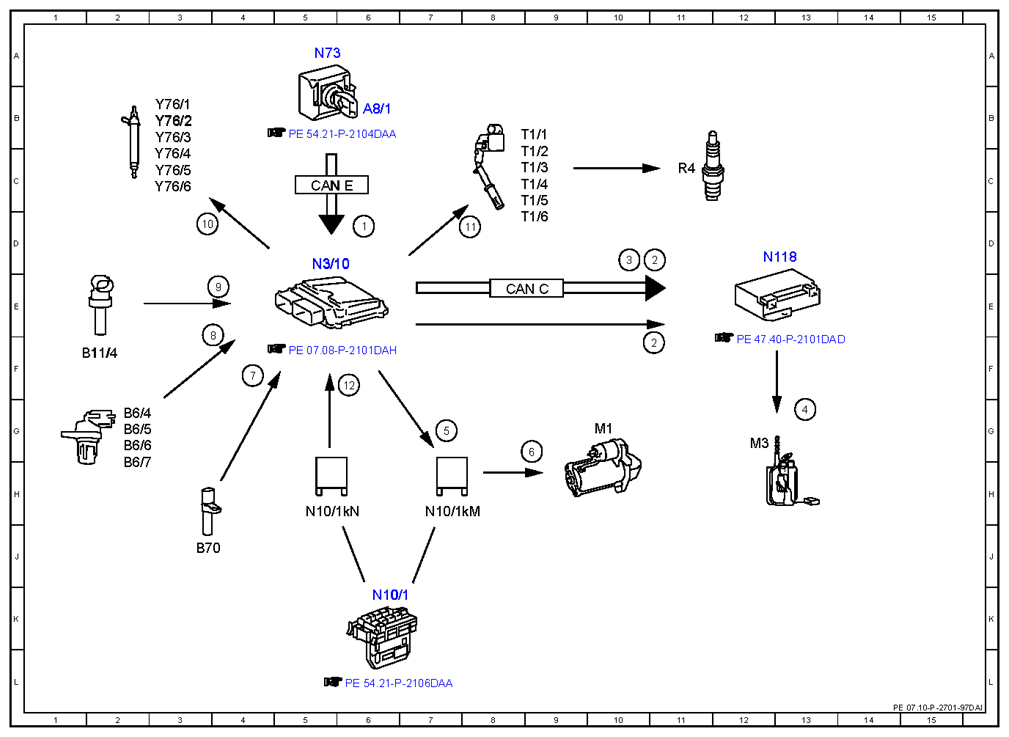

Electrical function schematic for starting - PE07.10-P-2701-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212 (except 212.095) up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 6D |
| 10 | Fuel injectors, actuation | 3D |
| 11 | Ignition coils, actuation | 8D |
| 12 | Circuit 87, status | 6F |
| 2 | Fuel pump, request ON | 11F |
| 2 | Fuel pump, request ON | 11D |
| 3 | Fuel pump, specified pressure request | 10D |
| 4 | Fuel pump, actuation | 13G |
| 5 | Starter circuit 50 relay, actuation | 7G |
| 6 | Starter, actuation | 9G |
| 7 | Engine speed, signal | 4F |
| 8 | Camshaft Hall sensor, signal | 3F |
| 9 | Coolant temperature sensor, signal | 4E |
| A8/1 | Transmitter key | 6B |
| B11/4 | Coolant temperature sensor | 2F |
| B6/4 | Left intake camshaft Hall sensor | 2G |
| B6/5 | Right intake camshaft Hall sensor | 2G |
| B6/6 | Left exhaust camshaft Hall sensor | 2G |
| B6/7 | Right exhaust camshaft Hall sensor | 2H |
| B70 | Crankshaft Hall sensor | 3J |
| CAN C | Drive train CAN | 8E |
| CAN E | Chassis CAN | 5C |
| M1 | Starter | 10G |
| M3 | Fuel pump (FP) | 12G |
| N10/1 | Front SAM control unit with fuse and relay module | 6K |
| N10/1kM | Starter circuit 50 relay | 7H |
| N10/1kN | Engine circuit 87 relay | 5H |
| N118 | Fuel pump control unit | 12D |
| N3/10 | ME-SFI [ME] control unit | 5D |
| N73 | Electronic ignition switch control unit | 5A |
| R4 | Spark plugs | 11C |
| T1/1 | Cylinder 1 ignition coil | 8B |
| T1/2 | Cylinder 2 ignition coil | 8C |
| T1/3 | Cylinder 3 ignition coil | 8C |
| T1/4 | Cylinder 4 ignition coil | 8C |
| T1/5 | Cylinder 5 ignition coil | 8C |
| T1/6 | Cylinder 6 ignition coil | 8D |
| Y76/1 | Cylinder 1 fuel injector | 3B |
| Y76/2 | Cylinder 2 fuel injector | 3B |
| Y76/3 | Cylinder 3 fuel injector | 3B |
| Y76/4 | Cylinder 4 fuel injector | 3C |
| Y76/5 | Cylinder 5 fuel injector | 3C |
| Y76/6 | Cylinder 6 fuel injector | 3C |
