Check engine oil level with special tool - AP18.00-P-1810MF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 278
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| 1 | Allow engine to warm up | ||
| 2 | Turn off engine | ||

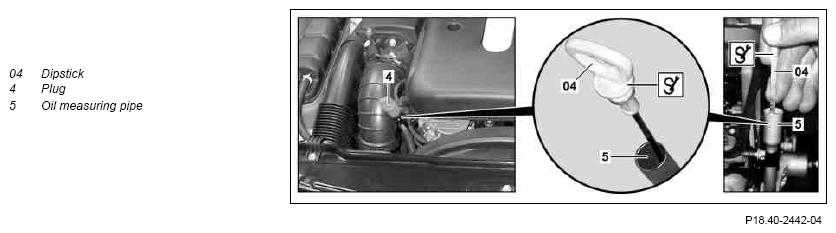

| 3 | Pull stop plug (4) out of oil measuring pipe (5) | ||
| Check | |||
| 4 | Guide dipstick (04) into oil measuring pipe (5) | The collar of the handle sits close to oil measuring pipe (5). |
|
| Fig 2 | |||
| 5 | Read off engine oil level at dipstick (04) | Fig 2 | |
| 6 | Determine level using oil level table | ||
| If the engine oil level is too high or too low, correct it | |||
| 7 | Correct the engine oil level | not for USA | AP18.00-P-1849UB |
| Maintenance intervals in combination with oils as per MBBV Specification, general overview Maintenance intervals in combination with oils as per MBBV Specification, general overviewFor USA only If engine oil level is too high, ↓ Suction off engine oil quantity according to the oil level table. If engine oil level is too low, ↓ Fill engine oil quantity according to the oil level table. |
AP18.00-P-1849UBU | ||
| 8 | Insert stop plug (4) into oil measuring pipe (5) |
