Removing and installing output flange - AR27.50-P-0620-02EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0 in MODEL 212 with ENGINE 642

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation		TRANSMISSION 725.0
BA27.10-P-1012-04H	Collar nut, output flange to output shaft	Nm	200

Fig 1: Identifying Pin Wrench (129 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench Bit (126 589 02 09 00)

Courtesy of MERCEDES-BENZ USA

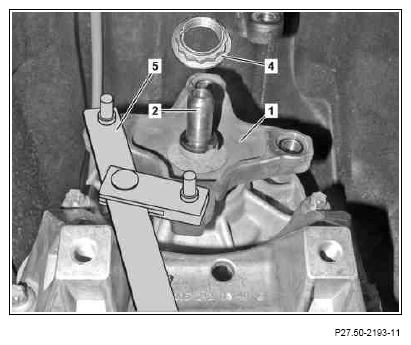

Counterhold output flange (1) with Allen key (5).
Unscrew twelve-point collar nut (4) from output shaft (2) using socket wrench bit
Remove output flange (1)

Fig 4: Removing Twelve-Point Collar Nut From Output Shaft Using Socket Wrench Bit
Courtesy of MERCEDES-BENZ USA

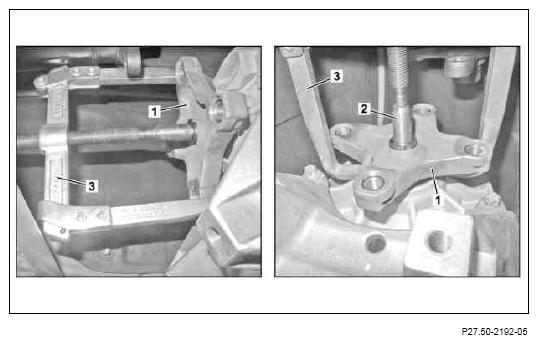

Remove output flange (1).
If output flange (1) is too firmly attached, use two-armed puller (3).

Fig 5: Removing Output Flange
Courtesy of MERCEDES-BENZ USA

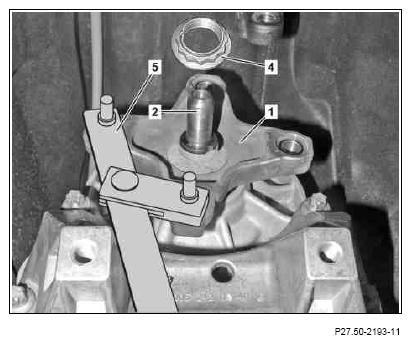

Push output flange (1) onto output shaft (2).
Counterhold output flange (1) using Allen key (5) and tighten twelve-point collar nut (4) using socket wrench bit.
Replace twelve-point collar nut (4).

Install output flange (1)

Fig 6: Replacing Twelve-Point Collar Nut
Courtesy of MERCEDES-BENZ USA

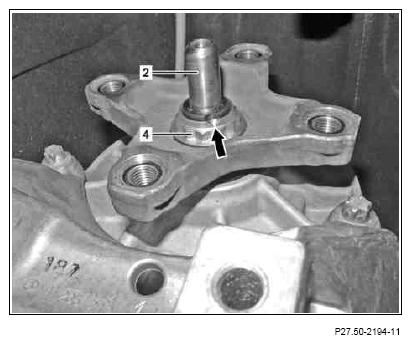

Secure twelve-point collar nut (4); to do this, hammer collar into the grooves of the output shaft (2) using a punch (arrow).
There are two grooves located on the output shaft (2), into which the collar of the twelve-point collar nut (4) must be pounded (arrow).

Fig 7: Securing Twelve-Point Collar Nut
Courtesy of MERCEDES-BENZ USA
