Remove/install wet clutch - AR27.51-P-0300EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

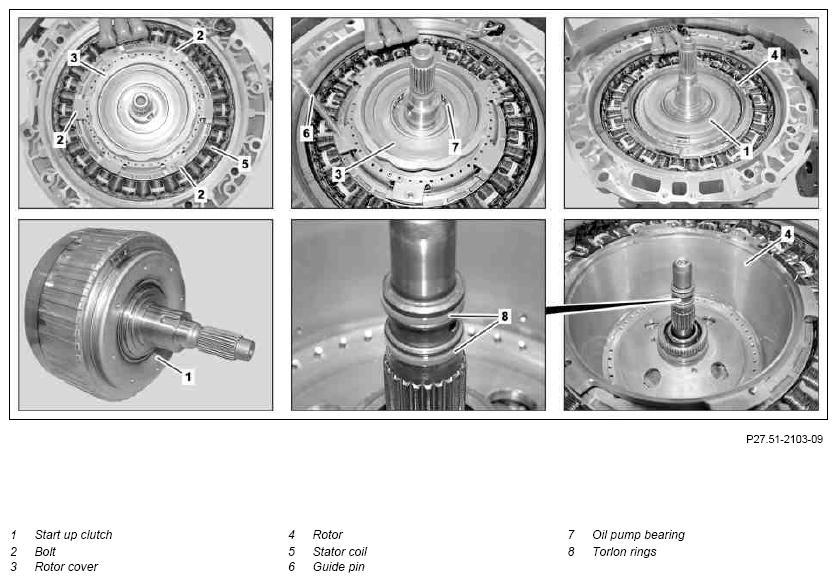

Fig 1: Wet Clutch Remove/Install Components
G09975852Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Remove intermediate housing   AR27.40-P-0500EH
NOTES Cleanliness is essential when working on the transmission.
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission.
IMPORTANT For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.
2 Remove bolts (2) INSTALLATION IMPORTANT Replace bolts (2).
TORQUE SPECIFICATION Bolt, rotor cover to rotor *BA27.10-P-1022-04G
3 Pry rotor cover (3) off rotor (4) using assembly wedge then remove NOTES Carefully pry off rotor cover (3). Otherwise the stator coils (5) of the electrical machine and the sealing surfaces may be damaged.
INSTALLATION IMPORTANT Align rotor cover (3) using SPECIAL TOOL guide pin (6) to rotor (4)
Use longer SPECIAL TOOL guide pin (6).
SPECIAL TOOL Mounting wedge Fig 2
SPECIAL TOOL Guide bolts Fig 4
4 Check oil pump bearing (7) for wear or damage IMPORTANT If necessary, replace oil pump bearing (7).
↓
Remove/install bearing of oil pump AR27.57-P-1010-01EH
SPECIAL TOOL Guide sleeve Fig 3
5 Remove start-up clutch (1) from rotor (4) INSTALLATION IMPORTANT Generally replace the Torlon rings (8).
6 Install in the reverse order
COMPLETE AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 724.2
BA27.10-P-1022-04G Bolt, rotor cover to rotor Nm 9
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G09975853Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Guide Sleeve (210 589 01 14 00)
G09975854Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Guide Bolts (724 589 01 15 00)
G09975855Courtesy of MERCEDES-BENZ USA
