Remove/install lift solenoid for park pawl actuator - AR27.60-P-0955EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

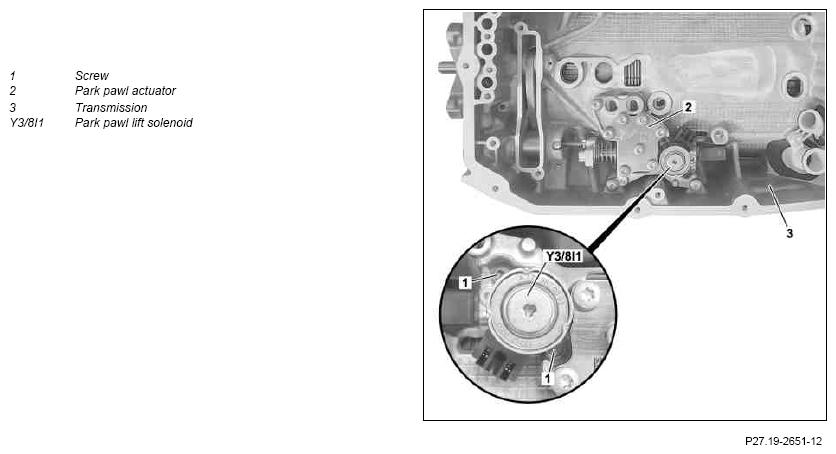

Fig 1: Lift Solenoid For Park Pawl Actuator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove fully integrated transmission control controller unit		AR27.19-P-0200EWM
1		Cleanliness is essential for all work on the transmission (3). Otherwise, even the smallest foreign particle in the hydraulic components of the transmission (3) can lead to malfunctions or a total failure of the transmission (3). For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.19-P-0200EWM
2	Unscrew screws/bolts (1) and remove park pawl lift solenoid (Y3/8I1) from park pawl actuator (2)	Screw/bolt, lift solenoid to park pawl actuator	*BA27.10-P-1016-04H
3	Install in the reverse order

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation		TRANSMISSION 725.0
BA27.10-P-1016-04H	Screw/bolt, lift solenoid to park pawl actuator	Nm	8
