Remove/install electronic selector lever module (ESM) - AR27.60-P-0901EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6 in MODEL 212
MODIFICATION NOTES
| 6.8.09 | Locking plate of shift rod on intermediate lever modified | BT27.60-P-0021-01A |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Raise vehicle with vehicle lift | ||

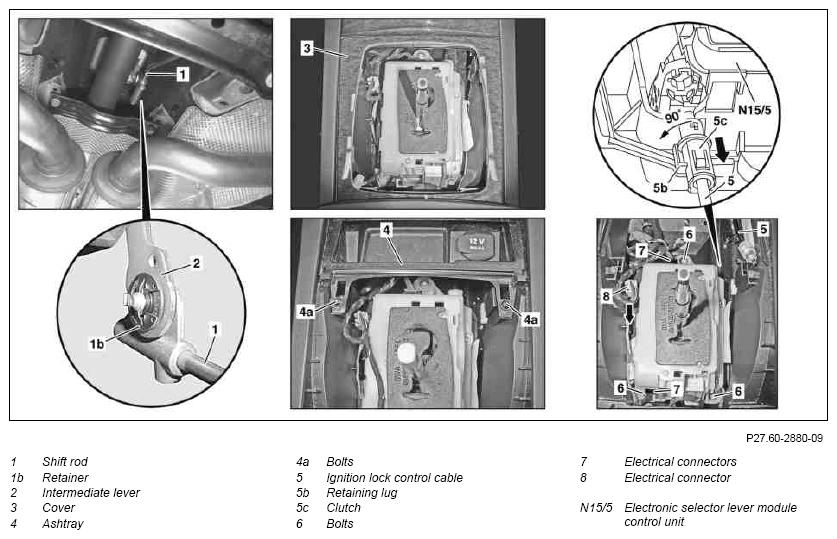

| 2 | Detach shift rod (1) from below at intermediate lever (2) | ||
| Locking plate of shift rod on intermediate lever modified | BT27.60-P-0021-01A | ||
| 3 | Remove selector lever handle with covering | AR27.60-P-0905EW | |
| 4 | Unclip cover (3) | Figure | |
| 5 | Remove bolts (4a) and remove ashtray (4) | ||
| 6 | Detach cable (5) from control unit (N15/5) | ||
| 7 | Remove bolts (6) | *BA27.60-P-1001-02A | |
| 8 | Disconnect electrical connectors (7) | ||
| 9 | Release electrical connector (8) downwards (arrow) | ||
| 10 | Remove control unit (N15/5) in position "P" | ||
| 11 | Install in the reverse order | ||
| 12 | Shift through all gear stages, check for proper operation and adjust shift rod if necessary | AR27.60-P-0980EW | |
| 13 | Read out fault memory with STAR DIAGNOSIS and erase if necessary |
TIGHTENING TORQUES FOR FLOOR SHIFT
| Number | Designation | Transmission 722.6 | |
|---|---|---|---|
| BA27.60-P-1001-02A | Bolt, floor selector to body | Nm | 6 |
