Disassemble/assemble planetary gear set 4 - AR27.50-P-0623-04EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Unclip thrust bearing (2) from planetary gear set 4 (1).
Detach oil duct (3).
Assembly: Check oil duct (3) for damage and replace, if necessary.
Detach adjusting disk (4) from planetary gear set 4 (1) (underside).
Assembly: The adjusting disk (4) has to be determined, as this is required for the axial play of the transmission.
Assemble in the reverse order.

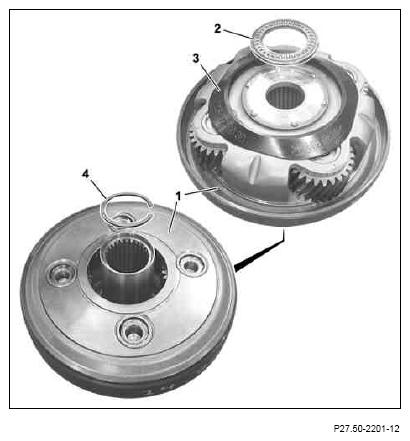

Fig 1: Planetary Gear Set 4, Thrust Bearing, Oil Duct & Adjusting Disk
Courtesy of MERCEDES-BENZ USA
