Disassemble/assemble planetary gear set 3 - AR27.50-P-0623-03EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Remove planetary gear set 3 (1) from annulus gear (2).
Unclip thrust bearing (3) from planetary gear set 3 (1).
Check thrust bearing (3) for damage and replace, if necessary.
Unclip thrust bearing (4, 5) from annulus gear (2).
Check thrust bearing (4, 5) for damage and replace, if necessary.

Assembly: Check thrust bearing (4, 5) is in correct installation position (arrow). Thrust bearings (4, 5) must be lined up.
Assemble in the reverse order.

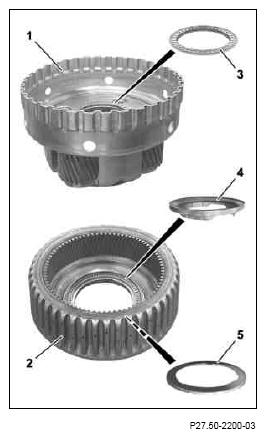

Fig 1: Planetary Gear Set, Annulus Gear & Thrust Bearing
Courtesy of MERCEDES-BENZ USA
